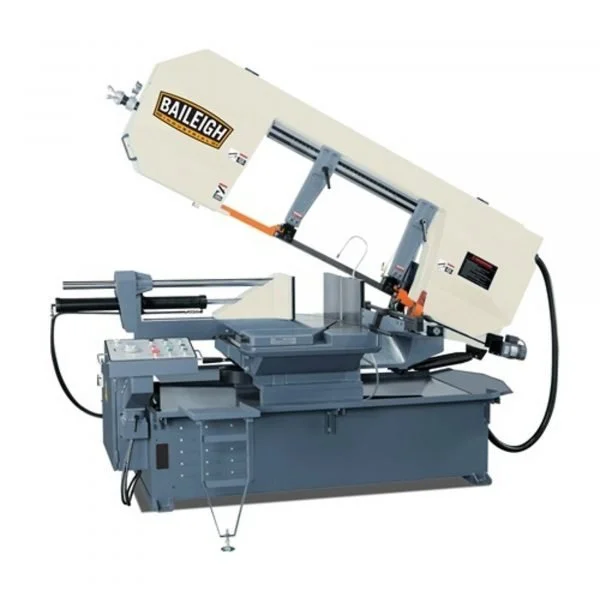

Baileigh BS-24SA-DM Dual Mitering Semi-Auto Bandsaw – 5 HP
$10,211.00
The Baileigh BS-24SA-DM Dual Mitering Semi-Auto Bandsaw features a powerful 5 HP motor, semi-automatic hydraulic operation, and dual 60° mitering capability. With an 18-inch round capacity and variable blade speeds, it delivers precision cutting for structural steel, tubing, and industrial fabrication applications.
In Stock
Description
Baileigh BS-24SA-DM Dual Mitering Semi-Auto Bandsaw – 5 HP
The Baileigh BS-24SA-DM Dual Mitering Semi-Automatic Horizontal Bandsaw is a heavy-duty industrial metal-cutting machine designed for fabrication shops, machine shops, steel service centers, and production facilities. Powered by a robust 5 HP motor and equipped with a dual-miter swivel head, this bandsaw delivers precise and efficient cutting of large structural materials, pipe, tubing, and solid stock.
Featuring a semi-automatic hydraulic system, the BS-24SA-DM automatically controls the vise clamping, cutting feed, and saw head return functions, reducing operator fatigue while increasing productivity. The saw head can miter 60° left and 60° right, allowing complex angle cuts without repositioning the material. Its large cutting capacity of up to 18 inches round and 17 x 24 inches rectangular makes it ideal for demanding industrial applications.
Constructed with a heavy-duty cast iron bow, carbide blade guides, hydraulic descent control, and a welded steel frame, the BS-24SA-DM provides exceptional rigidity, accuracy, and long-term durability for continuous production environments.
Key Features
- Powerful 5 HP industrial motor
- Semi-automatic hydraulic cutting operation
- Dual-miter swivel head with 60° left and right capability
- Large 18-inch round cutting capacity
- Handles rectangular stock up to 17 x 24 inches
- Variable blade speed from 106–317 SFPM
- Hydraulic vise clamping system
- Hydraulic bow feed and automatic return
- Heavy-duty cast iron bow for superior rigidity
- Carbide roller blade guides for precision cutting
- Welded steel frame minimizes vibration
- Designed for high-volume industrial production
- Ideal for structural steel, pipe, tubing, and solid materials
Applications
- Structural steel fabrication
- Metal fabrication shops
- Manufacturing facilities
- Industrial maintenance departments
- Pipe and tube processing
- Steel service centers
- Machine shops
- Heavy equipment manufacturing
- Production cutting operations
- Industrial metalworking applications
| Specification | Details |
|---|---|
| Model | BS-24SA-DM |
| Brand | Baileigh Industrial |
| Saw Type | Semi-Automatic Dual Mitering Horizontal Bandsaw |
| Motor Power | 5 HP |
| Power Requirement | 220V, 3-Phase |
| Miter Range | 0° to 60° Left & Right |
| Miter Adjustment | Dual Miter Swivel Head |
| Round Capacity | @ 90° 18 in (457 mm) |
| Square Capacity | @ 90° 18 in (457 mm) |
| Rectangular Capacity | @ 90° 17 x 24 in (430 x 610 mm) |
| Round Capacity | @ 45° 15.7–17.5 in |
| Round Capacity | @ 60° 11 in |
| Blade Size | 1.5 in x 0.051 in x 209.84 in |
| Blade Guide Type | Carbide Roller Guides |
| Blade Speed Range | 106 – 317 SFPM |
| Drive System | Belt & Pulley |
| Descent Control | Pressure-Assist Hydraulic |
| Head Return | Hydraulic |
| Table Height | 31.5 in |
| Frame Construction | Welded Steel Frame |
| Bow Construction | Heavy-Duty Cast Iron |
| Shipping Dimensions | 112 x 45 x 74 in |
| Machine Weight | Approx. 3,234–3,550 lbs |
| Warranty | 1-Year Parts Warranty |
