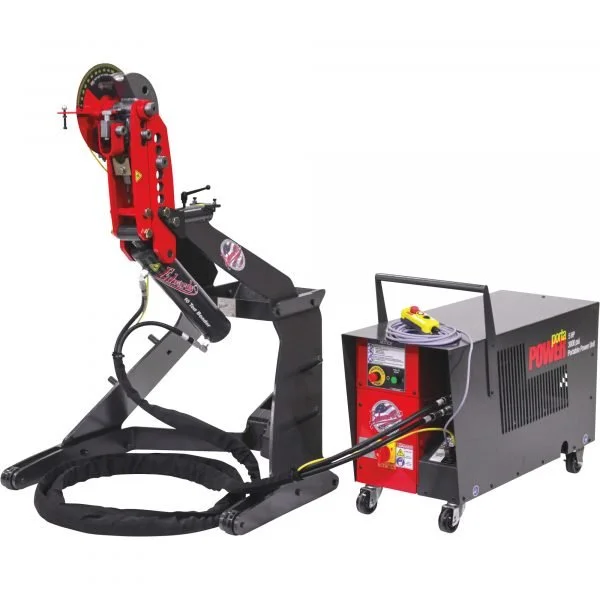

Edwards HAT1020 10-Ton Hydraulic Bender – 3PH 230V
$2,888.00
The Edwards HAT1020 is a 10-ton hydraulic tube and pipe bender powered by 230V 3-phase electricity. It features a portable hydraulic power unit, up to 180° bending capability, and is designed for industrial fabrication, structural tubing, and production metalworking applications.
In Stock
2-Day Shipping
|
All orders are processed and dispatched within 2 days
Description
Edwards HAT1020 10-Ton Hydraulic Bender – 3PH 230V
Product Overview
The Edwards HAT1020 is a 10-ton hydraulic tube and pipe bending system designed for industrial fabrication environments that require repeatable, high-precision bending up to 180° on tubing, pipe, and structural materials.
This version runs on 3-phase 230V power, making it better suited for shop-floor production environments compared to single-phase units, with improved motor efficiency and durability under continuous load.
It is typically supplied as a complete hydraulic system with portable power unit, enabling plug-and-play operation for fabrication workflows.
Key Features
- Strong 10-ton hydraulic bending force
- 230V, 3-phase industrial power system
- Plug-and-play hydraulic power unit configuration
- Horizontal or vertical bending operation
- Precision control for repeatable bends up to 180°
- Heavy-duty rolling frame for shop mobility
- Integrated degree control for production accuracy
- Compatible with a wide range of interchangeable die sets
- Designed for continuous industrial fabrication use
Bending Capacity
- Pipe: up to 2″ Schedule 40
- Tube: up to 2.5″ OD
- Square Tube: up to 2″ OD
- Max bend angle: 180°
- Stroke: ~14 inches
Technical Highlights
- Force: 10 tons
- Voltage: 230V 3-phase
- Hydraulic system: integrated power unit (porta power system)
- Operation: horizontal or vertical setup
- Control system: jog/hand controls with E-stop
- Frame: heavy-duty steel rolling base (~1000 lb class machine)
Applications
- Structural steel fabrication
- Pipe and tube bending shops
- Industrial HVAC and piping systems
- Automotive chassis and exhaust fabrication
- Heavy equipment modification
- Custom metal fabrication and production work
HAT1020 positioning (important difference)
Compared to the HAT1010 (1-phase):
- Better suited for industrial 3-phase shop environments
- More stable under continuous production loads
- Preferred for higher-duty fabrication operations
| Brand | Edwards Ironworkers |
|---|---|
| Manufacturer’s Warranty | 12 months parts / 12 months labor |
| Ship Weight | 1000.0 lbs |
| Hydraulic | Yes |
| Working Pressure | 2,750 |
| Max. PSI | 2,750 |
| Bending Applications | Pipe/tube |
| Max. Bending Radius (deg.) | 180 |
| Max. Bending Capacity – Round (In. dia.) | 2.5 |
| Dies Included | No |
| Dimensions L x W x H (in.) | 40 1/2 x 36 1/2 x 42 |
| Product Weight | 1000 lb |
