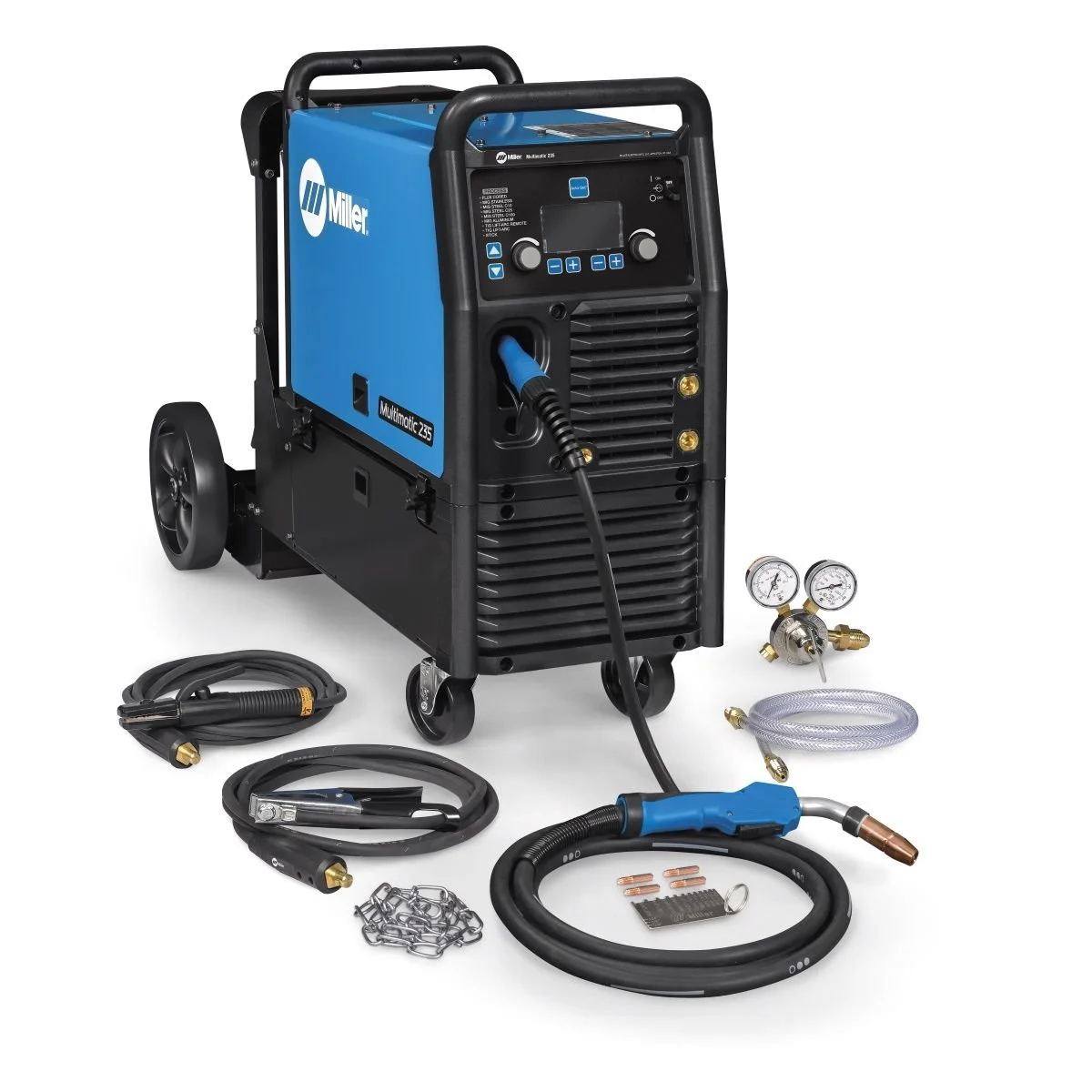

Miller Multimatic 235 Multi-Process Welder w/ Running Gear
$1,333.00
The Multimatic 235 w/ Running Gear is a serious workshop upgrade machine—it sits in the middle of Miller’s ecosystem as a high-capability shop welder with MIG + TIG + Stick versatility and improved power over the 215/220 line, but still below full industrial 255-class systems.
In Stock
2-Day Shipping
|
All orders are processed and dispatched within 2 days
Description
Miller Multimatic 235 Multi‑Process Welder w/ Running Gear
The Miller Multimatic 235 with Running Gear (RG) is a professional shop-grade multi-process inverter welder designed for users who need a serious step up from the 215/220 class while still keeping a mobile workshop setup inside a shop environment.
This system combines MIG, Flux-Core, Stick, DC TIG, and Pulsed TIG capability in one unit, mounted on a heavy-duty rolling cart (running gear) for cylinders, cables, and shop mobility.
Key Features
- Higher output than Multimatic 215/220
- Better for thicker steel and longer weld cycles
- Auto-Set Elite system
- Automatically sets voltage and wire feed speed
- Full multi-process capability
- MIG, Stick, and DC TIG in one platform
- Pulsed TIG support
- Improved heat control for thin materials
- Running Gear (RG) package
- Heavy-duty cart with gas cylinder mounting
- Converts machine into a rolling shop workstation
Best Applications
- Automotive fabrication (chassis, roll cages)
- Workshop fabrication and repair
- Farm and equipment repair
- Light industrial maintenance (MRO)
- Stainless steel TIG work (DC only)
- General fabrication shops
Advantages
- More power and duty cycle than Multimatic 215/220
- True multi-process flexibility (MIG + TIG + Stick)
- Shop-ready rolling system improves workflow
- Strong digital arc control and ease of setup
- Excellent “bridge” machine before industrial 255 systems
Limitations
- Not AC TIG (no true aluminum TIG capability via TIG process)
- Not a portable field welder
- Less powerful than Multimatic 255 or Millermatic 255
- Not intended for heavy production welding environments
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Multimatic 235 w/ Running Gear :(907757) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 240 V (Single-Phase Only) |
| Output Current Range | 20 – 235 A |
| Duty Cycle | 40% @ 170 A, 15% @ 235 A |
| Open Circuit Voltage (OCV) | 54 VDC |
| Rated Input Capacity | 6.3 kW |
| Power Factor & Efficiency | Optimized Single-Phase Performance |
| Wire Feed Speed Range | 1.5 – 20 m/min (60 – 800 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class F |
| Cooling System | Fan-On-Demand |
| Dimensions | 737 x 483 x 889 mm (with Running Gear) |
| Net Weight | 63 kg (Total System) |
| Smart Features | Auto-Set Elite, MDX-250 MIG Gun, Integrated EZ-Latch Running Gear |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Light Industrial Fabrication, Maintenance Repair, HVAC, DIY Industrial |
You may also like…
-
The Lincoln Bulldog 5500 Welder Generator w/ Cover Package is a portable engine-driven stick welder with a 5500W AC generator, designed for rugged field use. The included cover adds protection for storage and transport, making it a durable solution for farm, construction, and emergency repair applications. -

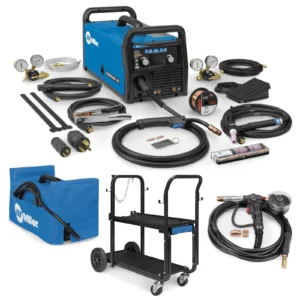

The Miller 907693 Multimatic 215 is a portable dual-voltage multi-process welder that combines MIG, Flux-Core, Stick, and DC TIG in one compact unit. It is best suited for users who want maximum versatility, easy setup, and strong all-around welding capability in a single machine rather than specialized industrial output.
-
