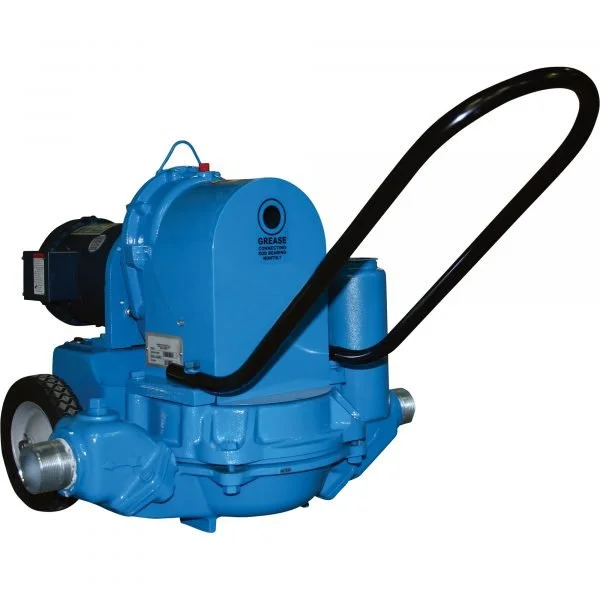

Generac 6798 Electric Diaphragm Pump (1800 GPH, 2in, 3-Phase)
$921.00
The Generac 6798 Electric Diaphragm Pump is a 2-inch, 3-phase industrial dewatering pump delivering up to 1,800 GPH. Designed for pumping dirty water, sludge, and debris, it features a durable diaphragm system, self-priming operation, and dry-run capability for construction and emergency applications.
In Stock
2-Day Shipping
|
All orders are processed and dispatched within 2 days
Description
Generac 6798 Electric Diaphragm Pump (1800 GPH, 2in, 3-Phase)
The Generac Power Systems 6798 Electric Diaphragm Pump is a heavy-duty 2-inch industrial-grade dewatering pump designed for demanding construction, utility, and flood control applications. Built with a rugged diaphragm pumping system, it is capable of handling dirty water, sludge, sand, and solids-laden fluids without the clogging or impeller damage issues found in conventional centrifugal pumps.
Powered by a 3-phase electric motor, this model delivers reliable continuous-duty performance with low maintenance requirements and stable high-torque operation. With a maximum flow capacity of 1,800 GPH (30 GPM), the 6798 is ideal for trench dewatering, foundation work, confined-space pumping, and emergency water removal where consistent performance is critical.
The diaphragm design allows the pump to run dry without damage, making it highly suitable for intermittent water conditions commonly found on job sites and disaster response environments.
Key Features
- Industrial 3-phase electric motor for stable high-torque output
- Handles dirty water, sludge, sand, and debris without clogging
- Diaphragm design eliminates impeller wear and damage
- Self-priming system for fast and easy operation
- Can run dry without damage to pump components
- Heavy-duty construction for harsh job site conditions
- Low maintenance and long service life design
- Ideal for continuous dewatering applications
- Reliable performance in construction and emergency environments
- Skid or portable mounting options for flexibility
Applications
- Construction site dewatering
- Foundation and trench drainage
- Utility installation projects
- Flood water removal
- Sludge and muddy water pumping
- Confined-space dewatering
- Emergency disaster response
- Industrial water transfer
| Specification | Details |
|---|---|
| Model | 6798 |
| Brand | Generac Power Systems |
| Pump Type | Electric Diaphragm Pump |
| Power Source | 3-Phase Electric Motor |
| Inlet / Outlet Size | 2 in (50.8 mm) |
| Maximum Flow Rate | 1,800 GPH (30 GPM) |
| Motor Type | Industrial 3-phase motor |
| Voltage Typically | 230V / 460V (config dependent) |
| Pump Technology | Positive displacement diaphragm system |
| Self-Priming | Yes |
| Dry-Run Capability | Yes (no damage when running dry) |
| Solids Handling | Sand, sludge, and debris tolerant |
| Housing Material | Heavy-duty corrosion-resistant aluminum |
| Mounting Type | Skid-mounted or wheel-mounted options |
| Operation Type | Continuous-duty dewatering pump |
| Maintenance Level | Low maintenance design |
