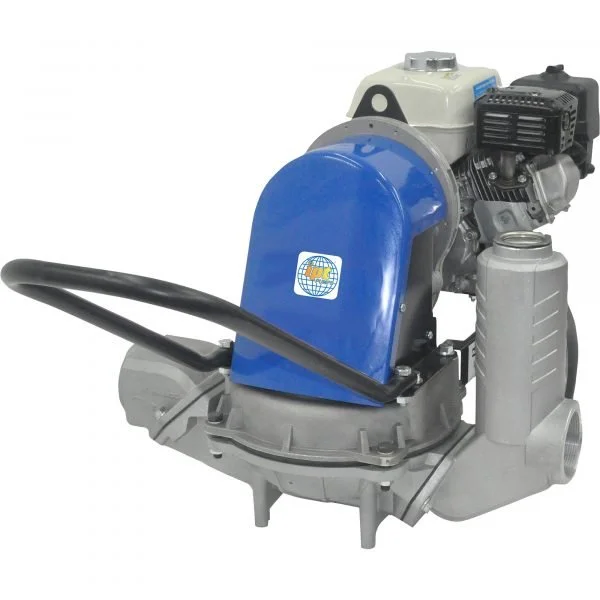

IPT 337G-IPT-96 3in Diaphragm Pump (5280 GPH, Honda GX120)
$711.00
The IPT 337G-IPT-96 3-inch diaphragm pump features a Honda GX120 engine and delivers up to 5,280 GPH. Designed for mud, sludge, and sewage handling, it supports solids up to 1-5/8 inch, making it ideal for construction dewatering and heavy-duty industrial pumping applications.
In Stock
2-Day Shipping
|
All orders are processed and dispatched within 2 days
Description
IPT 337G-IPT-96 3in Diaphragm Pump (5,280 GPH, Honda GX120 Engine)
The IPT 337G-IPT-96 Diaphragm Pump is a rugged 3-inch engine-driven sludge and trash pump designed for demanding dewatering applications such as construction sites, wastewater handling, mud removal, and slurry transfer. Powered by a reliable Honda GX120 4-stroke gasoline engine, this pump delivers dependable performance in harsh working conditions where conventional centrifugal pumps would clog or fail.
Built with a heavy-duty diaphragm pumping system, the IPT 337G-IPT-96 is capable of handling dirty water, mud, sludge, sewage, and solids-laden fluids up to 1-5/8 inch (41 mm). Its self-priming design allows for fast startup and efficient operation without the need for complex priming systems.
With a maximum flow capacity of 5,280 GPH (approximately 88 GPM), this pump is ideal for contractors, utility crews, and rental fleets that require a compact yet powerful portable diaphragm pump for tough job site conditions.
Key Features
- Powered by reliable Honda GX120 engine
- Handles sludge, mud, sewage, and thick slurry
- High solids handling up to 1-5/8 inch
- Self-priming diaphragm design for fast startup
- Heavy-duty gear-driven transmission system
- Durable cast aluminum pump housing
- Portable frame with wheel kit for job site mobility
- Designed for harsh construction and utility environments
- Can operate in dirty water conditions where impeller pumps fail
- Modular design for easier maintenance and cleaning
Applications
- Construction site dewatering
- Mud and sludge removal
- Sewer bypass and wastewater pumping
- Utility and pipeline projects
- Flood cleanup and disaster response
- Industrial liquid transfer
- Excavation and trench drainage
- Mining and heavy-duty site pumping
| Specification | Details |
|---|---|
| Model | 337G-IPT-96 |
| Brand | IPT Pumps |
| Pump Type | Engine-Driven Diaphragm Pump |
| Engine Model | Honda GX120 |
| Engine Type | 4-Stroke OHV Gasoline Engine |
| Engine Displacement | 120 cc |
| Engine Power | ~4 HP |
| Fuel Type | Gasoline |
| Maximum Flow Rate | 5,280 GPH (≈ 88 GPM) |
| Inlet / Outlet Size | 3 in (FNPT) |
| Maximum Solids Handling | Up to 1-5/8 in (41 mm) |
| Pump Type | Positive Displacement Diaphragm Pump |
| Self-Priming | Yes |
| Pump Housing | Cast aluminum construction |
| Transmission | Heavy-duty gear-driven system |
| Frame Type | Portable steel frame with wheel kit |
| Operation Type | Continuous-duty job site pump |
