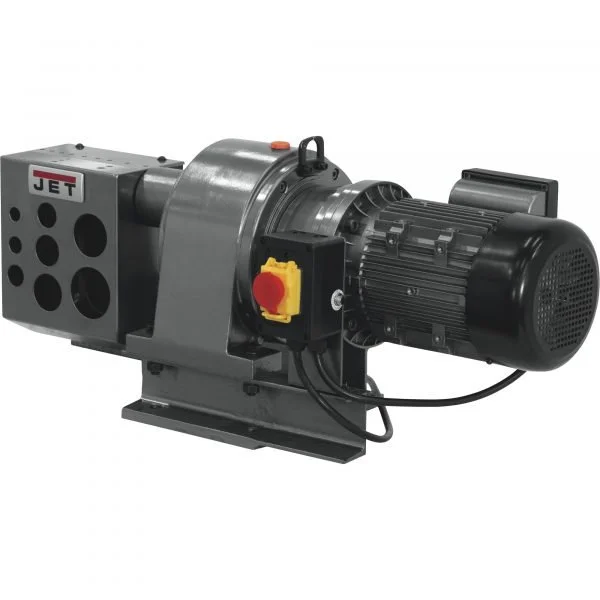

JET ESN-40 Electric Pipe Notcher – Schedule 40, 90 Degree Angle

Description

JET ESN-40 Electric Pipe Notcher – Schedule 40, 90° Angle

The JET ESN-40 Electric Pipe Notcher is a heavy-duty Schedule 40 pipe notching machine designed specifically for rapid, repeatable 90-degree copes in fabrication environments. It is widely used in structural steel shops, handrail fabrication, and metal frame production where consistent tube-to-tube joints are required.

Powered by a 2 HP, 220V single-phase motor, the ESN-40 is built for continuous shop use and delivers fast, clean notch cuts that prepare pipe ends for welding without manual grinding or template cutting.

The machine operates by inserting the pipe into a die, performing a notch on one side, then rotating the pipe 180° to complete the full saddle profile.

Key Features

• Dedicated 90° fixed-angle pipe notching system
• Handles Schedule 40 pipe up to 2 inches OD
• Powerful 2 HP electric motor (220V, 1PH)
• Heavy-duty benchtop industrial construction
• Magnetic safety switch for motor protection
• Full guarding around cutting dies for operator safety
• Quick repeatability for production runs
• Replaceable die system for multiple pipe sizes

Cutting / Notching Capacity

• 1/4″, 3/8″, 1/2″, 3/4″, 1″
• 1-1/4″, 1-1/2″, 2″ Schedule 40 pipe
• Maximum wall thickness: approx. 1/8″

Technical Highlights

• Motor: 2 HP electric
• Voltage: 220V single-phase
• Operation: Fixed 90° mechanical notching
• Frame: Steel industrial bench unit (~247 lb class)
• Output type: Tube saddle / fish-mouth notch

Applications

• Structural steel fabrication
• Handrail and guardrail manufacturing
• Pipe frame construction
• Industrial welding preparation
• HVAC metal framework
• Production metal shops

Why shops use it

The ESN-40 is chosen when productivity matters more than flexibility:

• Extremely fast repeat pipe coping
• Consistent weld-ready joints
• Eliminates manual grinding or template cutting
• Ideal for high-volume fabrication environments

JET ESN-40 Electric Pipe Notcher – Schedule 40, 90 Degree Angle: Buying Considerations

The JET ESN-40 Electric Pipe Notcher is a heavy-duty Schedule 40 pipe notching machine designed specifically for rapid, repeatable 90-degree copes in fabrication environments. It is widely used in structural steel shops, handrail fabrication, and metal frame production where consistent tube-to-tube joints are required.

Before ordering the JET ESN-40 Electric Pipe Notcher – Schedule 40, 90 Degree Angle from JET, review the points below against your actual site conditions and workload. Published specifications describe the equipment under test conditions, and real-world performance depends on how closely your application matches those conditions. Buyers in the United States, Canada, and Asia should also confirm local voltage and frequency requirements, applicable safety or emissions standards, and freight or import logistics for the destination before finalizing an order.

What to Check Before You Buy

• Confirm bar diameter range and bend/cut capacity matches the rebar or bar stock sizes actually used on typical projects.
• Check production rate requirements against manual, electric, or hydraulic machine classes.
• Verify power supply and portability needs match whether the equipment stays in a shop or moves between job sites.
• Review tooling and die availability for the specific bend angles and bar grades used.

What determines whether a bar bender needs to be hydraulic versus electric?

Larger bar diameters and higher production volumes generally favor hydraulic bending for consistent force and speed, while electric models suit lighter-duty or occasional bending work with lower power requirements.

For sizing help across the full Bar Fabrication category, compare specifications side by side before committing to a specific model, and confirm current pricing, availability, and freight details for your location. Keep the supplier data sheet and any acceptance criteria on record for future maintenance and replacement decisions.

Total Cost of Ownership

The purchase price of the JET ESN-40 Electric Pipe Notcher – Schedule 40, 90 Degree Angle is only part of the real cost of owning this equipment. Factor in routine maintenance parts, consumables specific to the Bar Fabrication category, fuel or energy use over the equipment’s service life, and the cost of downtime if a failure happens during a critical job. Equipment with a lower purchase price but weaker local parts availability or a shorter warranty period can end up costing more over three to five years than a model with a higher upfront price and stronger support.

Warranty and Support

Confirm the specific warranty terms JET offers on this model, including coverage length, what is and is not covered (wear parts are frequently excluded), and whether the warranty is transferable if the equipment is resold. Check whether authorized service is available in your region before an issue comes up, rather than after – parts and qualified technician availability varies significantly by location and can be the deciding factor between two otherwise comparable machines.

Keep the original purchase documentation, serial number, and any commissioning or acceptance records together – this documentation is typically required to make a warranty claim and simplifies any future resale or insurance process.
