JET HBS-916W Horizontal Metal Cutting Band Saw – 9in x 16in
$1,888.00
The JET HBS-916W Horizontal Metal Cutting Band Saw features a 1.5 HP motor, 9 x 16-inch cutting capacity, hydraulic downfeed control, and an integrated coolant system. Designed for fabrication shops and industrial metalworking applications, it delivers precise, reliable cutting performance for steel, pipe, tubing, and structural materials.
In Stock
Description
JET HBS-916W Horizontal Metal Cutting Band Saw – 9in x 16in, 1.5 HP
The JET HBS-916W Horizontal Metal Cutting Band Saw is a heavy-duty industrial bandsaw designed for precision cutting of steel, stainless steel, aluminum, pipe, tubing, and structural materials. Powered by a reliable 1.5 HP motor, this machine combines rugged construction, hydraulic downfeed control, and an integrated coolant system to deliver accurate, repeatable cuts in fabrication shops, maintenance departments, and manufacturing facilities.
Featuring a large 9-inch round capacity and 9 x 16-inch cutting capacity, the HBS-916W handles a wide variety of stock sizes. The quick-positioning vise swivels up to 45° for miter cuts, while carbide blade guides with double-row ball bearing support improve blade tracking and cutting accuracy. The saw also includes an automatic shutoff feature that stops the machine when the cut is completed, enhancing efficiency and operator safety. Built with industrial-grade components including a hydraulic downfeed system, self-propelled blade brush, adjustable material stop, and flood coolant system, the HBS-916W is engineered for long service life and dependable performance in demanding metalworking environments.
Key Features
- Powerful 1.5 HP industrial motor
- Large 9 x 16-inch cutting capacity
- Quick-positioning vise swivels up to 45°
- Fully adjustable hydraulic downfeed system
- Automatic shutoff after cut completion
- Integrated flood coolant system
- Carbide blade guides with bearing support
- Self-propelled blade cleaning brush
- Adjustable material stop for repeat cuts
- Heavy-duty industrial construction
- Suitable for steel, stainless steel, aluminum, and tubing
- Designed for fabrication and production environments
Applications
- Metal fabrication shops
- Structural steel processing
- Pipe and tube cutting
- Manufacturing facilities
- Maintenance workshops
- Machine shops
- Production metal cutting
- Stainless steel fabrication
- Aluminum processing
- Industrial maintenance operations
| Specification | Details |
|---|---|
| Model | HBS-916W |
| Brand | JET Tools |
| Saw Type | Horizontal Metal Cutting Band Saw |
| Motor Power | 1.5 HP |
| Power Supply | 115V / 230V, Single Phase |
| Cutting Capacity (W x D) | 9 x 16 in |
| Round Capacity | @ 90° 9 in |
| Round Capacity | @ 45° 6-1/8 in |
| Rectangular Capacity | @ 90° 8-1/2 x 14 in / 2 x 16 in |
| Rectangular Capacity | @ 45° 9 x 6-1/8 in |
| Vise Swivel | 45° |
| Blade Size | 1 in x 0.035 in x 119-1/2 in |
| Blade Speeds | 82, 132, 170, 235 SFPM |
| Blade Wheel Diameter | 13 in |
| Feed System | Hydraulic Downfeed |
| Coolant System | Integrated Flood Coolant |
| Blade Guides | Carbide Guides with Double-Row Bearings |
| Automatic Shutoff | Yes |
| Bed Height | 25 in |
| Machine Weight | Approx. 704 lbs |
| Overall Dimensions | 65 x 28 x 42 in |
You may also like…
-

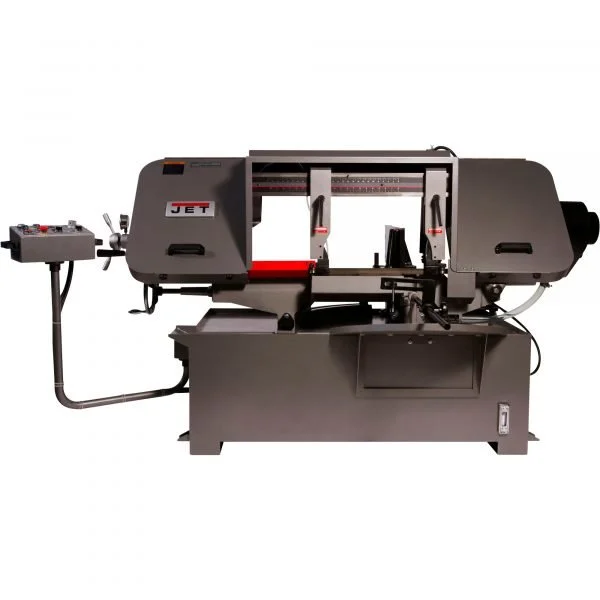

The JET HBS-1220MSA Semi-Automatic Variable Speed Mitering Bandsaw features a powerful 3 HP motor, hydraulic downfeed, automatic bow return, and variable blade speeds from 90–370 SFPM. With a large 12 x 20-inch cutting capacity and 45° mitering head, it is ideal for fabrication, manufacturing, and industrial metal-cutting applications. -
