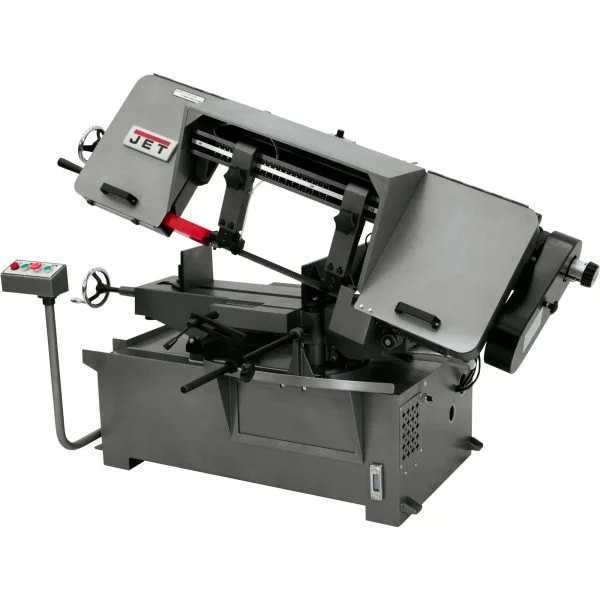

JET J-7040M Horizontal Mitering Bandsaw – 10x16in, 2HP
$7,909.00
The JET J-7040M horizontal mitering bandsaw features a 2 HP motor, 10 x 16 inch cutting capacity, swivel miter head, hydraulic downfeed, and geared drive system. Ideal for industrial fabrication, pipe cutting, and structural steel applications requiring precise angled cuts.
In Stock
Free Standard Shipping Worldwide
|
US/CA 11–23 · AU 8–17 · Other countries 30–45 business days
Description
JET J-7040M Horizontal Mitering Bandsaw – 10in x 16in, 2 HP
The JET J-7040M Horizontal Mitering Bandsaw is a heavy-duty industrial metal cutting machine designed for fabrication shops, machine shops, and production environments requiring both straight and angled cuts on larger stock materials. Powered by a 2 HP motor, it delivers strong, stable cutting performance for steel, stainless steel, aluminum, pipe, tubing, and structural profiles.
What sets the J-7040M apart from standard horizontal bandsaws is its swivel mitering head, which allows precise angled cutting without repositioning the workpiece—improving accuracy, speed, and repeatability in fabrication workflows.
Key Features
- Powerful 2 HP industrial motor
- Large 10 x 16 inch cutting capacity
- Swivel head for miter cutting (0° to 45° range)
- Geared transmission system for high torque cutting
- Hydraulic downfeed for controlled blade pressure
- Heavy-duty cast iron saw frame for rigidity
- Integrated coolant system for blade cooling and longevity
- Industrial blade guide system for cutting accuracy
- Adjustable material stop for production repeatability
- Designed for continuous industrial use
Technical Highlights
- Cutting capacity: 10″ round / 10 x 16″ rectangle
- Motor power: 2 HP
- Miter range: typically up to 45°
- Drive system: Gear-driven (oil bath transmission)
- Feed system: Hydraulic downfeed
- Operation type: Manual / semi-assisted industrial cutting
- Blade type: Industrial bi-metal bandsaw blade
Applications
- Structural steel fabrication
- Pipe and tube cutting
- Machine shops
- Manufacturing and production facilities
- Metal fabrication workshops
- Industrial maintenance and repair
J-7040M Value Summary
The J-7040M is essentially a miter-capable version of the J-7040, combining:
- Heavy-duty 2 HP cutting power
- Accurate angle cutting via swivel head
- High rigidity for repeatable production cuts
- Versatility for both straight and angled fabrication work
| Brand | Jet |
|---|---|
| Full Model Number/SKU | J-7040M |
| Motor & Power | 2 HP, 230/460V, 3 Phase |
| Swivel Head Design | Swiveling Head, Stationary Base :(Stock remains still) |
| Sawing Capacity (90°) | Round: 10" / Rectangular: 10" x 16" |
| Blade Size | 1" x 0.035" x 130" |
| Blade Speed Range | Variable Speed: 100 – 350 SFPM |
| Table Height | 23-1/2" |
| Physical Dimensions | 76" L x 30" W x 48" H |
| Weight (Net/Ship) | 1200 lbs / 1380 lbs |
| What's Included | Horizontal Mitering Bandsaw, Cooling System |
| Warranty | 24 Months Parts & Labor |
