Dewalt DXCM602 – Air Compressor
$255.00
The DXCM602 is built around a high-pressure single-stage system, which gives it a key advantage: it stores more usable air in the tank compared to lower-pressure 135 PSI compressors. This helps reduce compressor cycling and improves tool runtime between refills.
However, its real performance strength is its 11.5 SCFM output, which places it in the light-to-medium shop class:
- Good for impact wrenches (intermittent use)
- Suitable for spray painting (light to moderate duty)
- Works for tire service and general maintenance
- Not ideal for continuous high-demand tools like sandblasting or heavy grinders
In Stock
Description

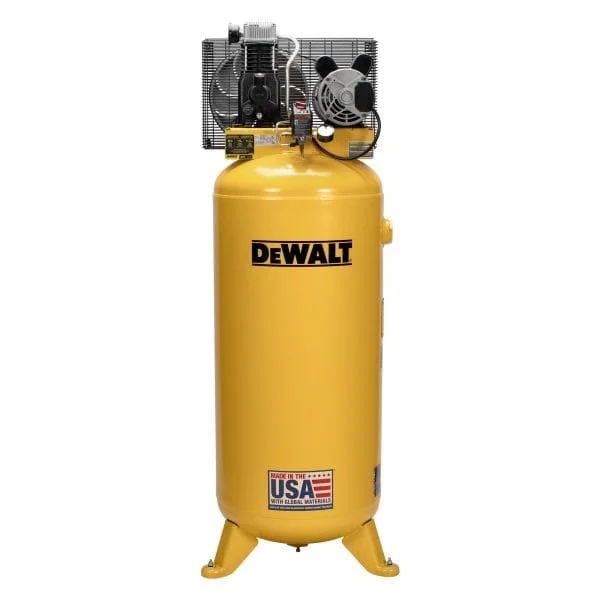

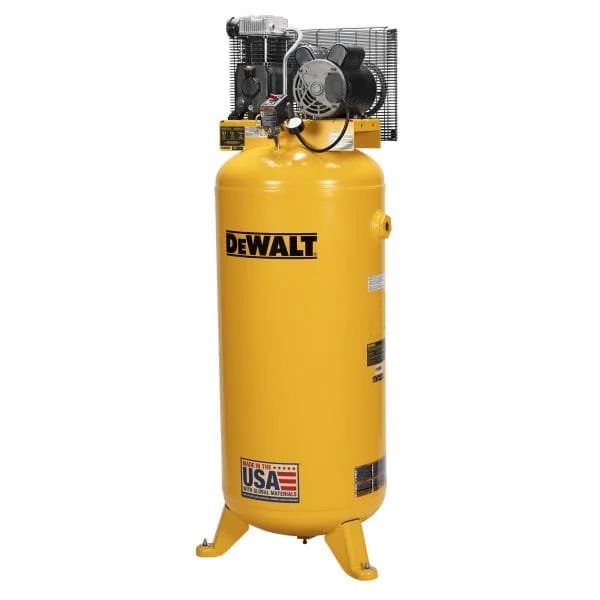

DEWALT DXCM602 Air Compressor – 60 Gallon 3.7 HP Oil-Lubed Single-Stage Industrial Compressor
The DEWALT DXCM602 is a heavy-duty stationary 60-gallon air compressor designed for automotive shops, garages, and light industrial use. It is part of DEWALT’s mid-range workshop compressor lineup, focusing on higher pressure storage (175 PSI) and consistent airflow for intermittent pneumatic tools.
This model features a 3.7 HP electric induction motor, a belt-driven oil-lubricated single-stage pump, and a 60-gallon ASME-certified vertical steel tank, making it suitable for users who need reliable shop air without stepping into large industrial two-stage systems.
It delivers approximately 11.5 SCFM at 90 PSI and 13.4 SCFM at 40 PSI, providing enough airflow for impact wrenches, air ratchets, spray guns, and general workshop applications.
Key Features
- 60-gallon vertical steel air tank
- Maximum pressure: 175 PSI for extended air storage capacity
- Air delivery: 3.7 HP oil-lubricated induction motor
- Belt-drive system for lower RPM and longer pump life
- Cast iron twin-cylinder pump design for durability
- Aluminum head for improved heat dissipation
- ASME-certified tank construction
- Designed for continuous workshop duty (non-continuous heavy industrial use)
Ideal Applications
- Automotive repair shops
- Home and professional garages
- Light fabrication and metalwork
- Tire inflation and service work
- Painting and detailing
- General workshop pneumatic tools
| Specification | Details |
|---|---|
| Model | DEWALT DXCM602 |
| Tank Capacity | 60 Gallons |
| Motor Power | 3.7 HP |
| Pump Type | Single-stage, oil-lubricated |
| Drive Type | Belt-driven |
| Air Delivery | 11.5 SCFM @ 90 PSI |
| Max Pressure | 175 PSI |
| Voltage | 208–230V single-phase |
| Duty Cycle | Workshop / Light Industrial |
| Application | Garage / Automotive / Maintenance |
You may also like…
-

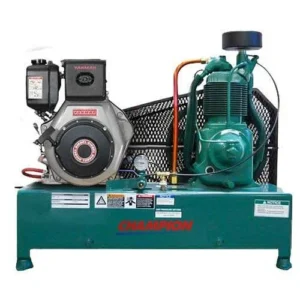

Champion BDPL5Y Air Compressor: Extreme-duty 9HP diesel-powered compressor featuring the PL-Series pressure-lubricated pump, designed for off-level operation in remote field environments.- Engine Specs: 9.1 HP Yanmar Diesel
