EMAX ERI0050801 – Industrial Rotary Screw Compressor
$2,566.00
The ERI0050801 is designed for constant air demand environments, where piston compressors would normally cycle on and off. Instead, the rotary screw system:
- Produces steady, non-pulsating airflow
- Eliminates frequent start/stop cycling
- Reduces mechanical wear and heat stress
- Improves efficiency in long runtime applications
This makes it ideal for:
- Small manufacturing facilities
- Continuous workshop air systems
- Packaging and assembly lines
- CNC light-duty operations
- Multi-tool pneumatic stations
In Stock
Description

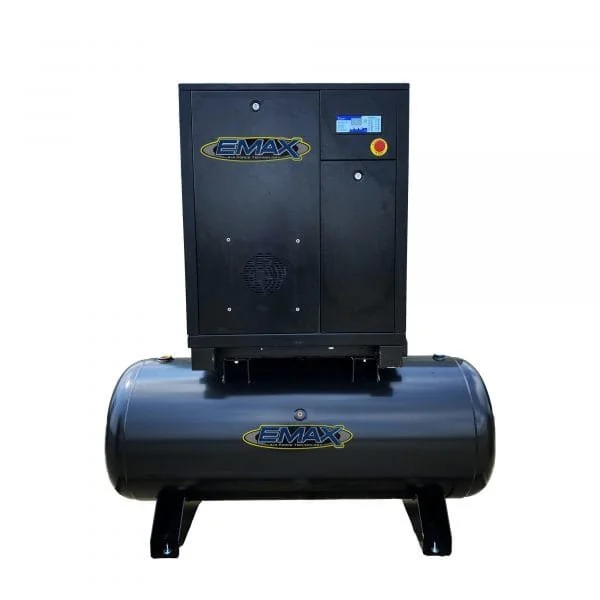

EMAX ERI0050801 – Industrial Rotary Screw Air Compressor (5 HP, 80 Gallon Tank Mount)
The EMAX ERI0050801 is a compact industrial rotary screw air compressor system mounted on an 80-gallon ASME-certified tank, designed for continuous-duty operation, quiet performance, and high-efficiency compressed air delivery in workshops and light industrial environments.
Unlike piston compressors, this model uses an oil-injected rotary screw air-end, which allows it to run continuously (100% duty cycle) with smoother airflow, lower vibration, and reduced maintenance requirements. It is ideal for facilities that need steady air supply without pressure cycling interruptions.
This unit is powered by a 5 HP single-phase electric motor and delivers approximately 19.4 CFM at 100 PSI with a maximum pressure of 145 PSI.
Key Features
- 5 HP industrial electric motor (230V, single-phase)
- Oil-injected rotary screw air-end system
- Mounted on 80-gallon ASME-certified horizontal tank
- Air delivery: ~19.4 CFM @ 100 PSI
- 100% continuous duty cycle capability
- Sound-insulated design for low noise operation
- Belt-drive system with 1750 RPM motor operation
- Integrated smart controller (Logik 9 system)
- Maintenance alerts, pressure scheduling, and system monitoring
- High-efficiency filtration and oil separation system
Advantages
100% Duty Cycle Operation
Can run continuously without resting cycles.
Rotary Screw Efficiency
Smooth airflow with minimal pressure fluctuation.
Low Noise Cabinet Design
Significantly quieter than piston compressors.
Tank-Mounted Stability
80-gallon buffer reduces pressure dips during demand spikes.
Ideal Applications
- Industrial workshops
- Production facilities
- CNC/light automation systems
- Packaging lines
- Fabrication shops
- Continuous pneumatic tool systems
| Specification | Details |
|---|---|
| Model | EMAX ERI0050801 |
| Type | Rotary Screw Air Compressor (Tank Mounted) |
| Motor Power | 5 HP |
| Air Delivery | ~19.4 CFM @ 100 PSI |
| Max Pressure | 145 PSI |
| Tank Capacity | 80 Gallons |
| Tank Orientation | Horizontal |
| Drive Type | Belt-driven |
| Voltage | 230V single-phase |
| Duty Cycle | 100% continuous |
| Cooling | Air/oil radiator system |
| Application | Industrial / Workshop / Production |
