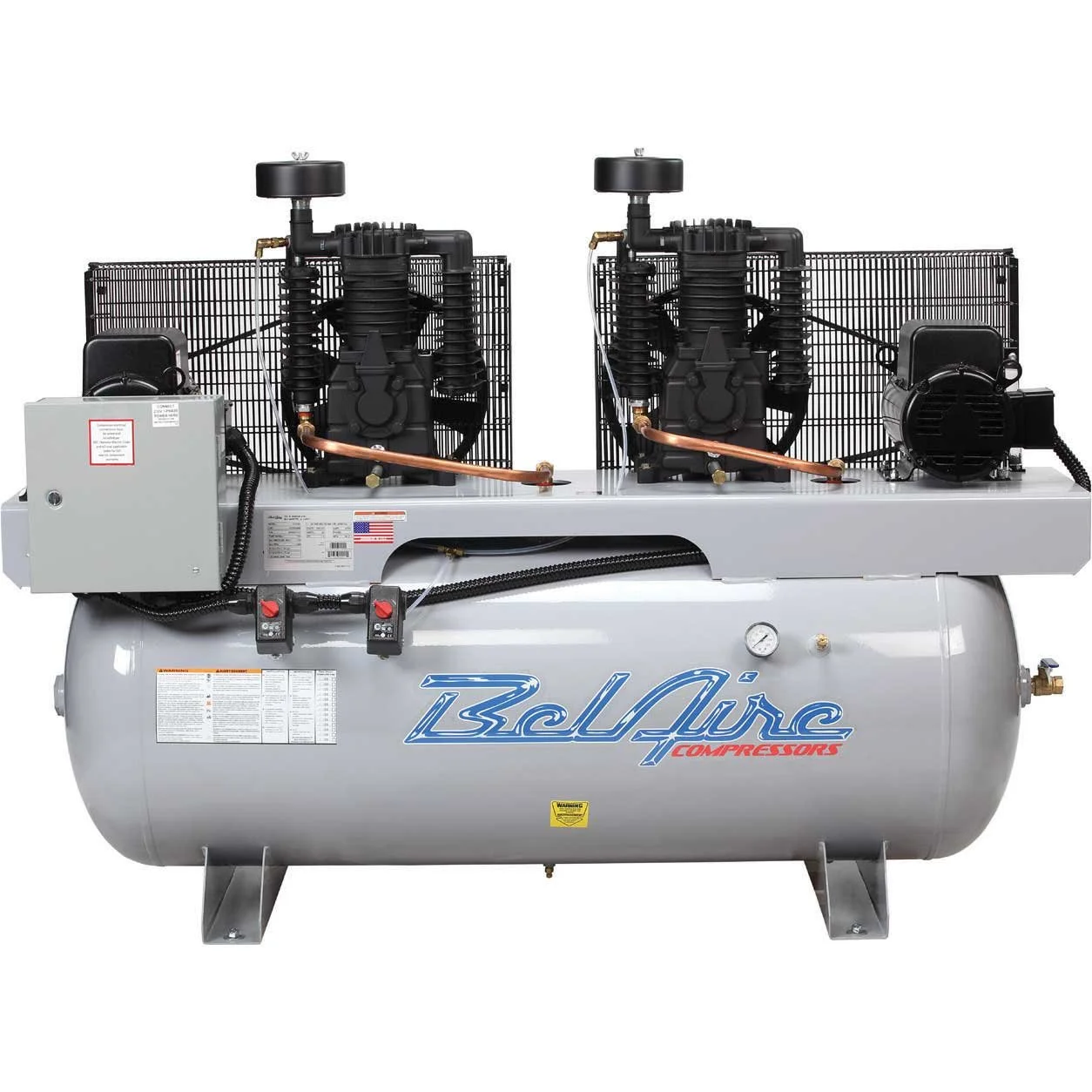

BelAire 3312DL Air Compressor – 12HP Duplex
$3,540.00
The BelAire 3312DL utilizes two independent compressor pumps and motors mounted on a single receiver tank. During periods of low air demand, only one compressor operates, reducing energy consumption and wear. When air demand increases, the second compressor automatically engages to maintain pressure and airflow. This intelligent duplex design extends equipment life while providing critical backup capability should one compressor require maintenance.
In Stock
Description
BelAire 3312DL Air Compressor – 15 HP Duplex Industrial Air Compressor
The BelAire 3312DL Air Compressor is a premium industrial-grade duplex air compressor engineered for manufacturing facilities, CNC machining operations, automotive service centers, and heavy-duty industrial applications requiring continuous compressed air. Featuring dual 7.5 HP motors, two-stage cast iron pumps, and a large 120-gallon horizontal ASME tank, the BelAire 3312DL delivers exceptional airflow, built-in redundancy, and energy-efficient operation. With an impressive output of 50.5 CFM at 100 PSI and a maximum pressure of 175 PSI, this compressor is designed to support demanding production environments with minimal downtime.
Key Features
- Duplex configuration with two independent 7.5 HP compressors
- Total system output of 15 HP
- Heavy-duty two-stage cast iron pumps
- 120-gallon horizontal ASME-certified air receiver tank
- Delivers 50.5 CFM at 100 PSI
- Delivers 44.6 CFM at 175 PSI
- Maximum operating pressure of 175 PSI
- Integrated alternator control system
- Dual pressure switch operation
- Magnetic starters included
- Fully enclosed belt guard for operator safety
- Built-in compressor redundancy for continuous operation
- Designed for demanding industrial environments
- Two-year bumper-to-bumper warranty
Ideal Applications
The BelAire 3312DL is suitable for:
- Manufacturing plants
- CNC machining facilities
- Automotive repair centers
- Fleet maintenance operations
- Metal fabrication workshops
- Industrial production lines
- Packaging facilities
- Woodworking plants
- Agricultural equipment service centers
- High-demand pneumatic tool systems
Benefits of the BelAire 3312DL
The BelAire 3312DL is built for facilities where compressed air reliability is essential. Its duplex configuration provides continuous operation, increased efficiency, and reduced maintenance downtime. The combination of dual 7.5 HP motors, high airflow capacity, and a large 120-gallon tank ensures stable air delivery for multiple workstations and demanding industrial processes. The alternator system balances runtime between compressors, maximizing service life and reducing operating costs.
| Specification | Details |
|---|---|
| Model BelAire | 3312DL |
| Compressor Type | Duplex Two-Stage |
| Motor Configuration | 2 × 7.5 HP |
| Total Horsepower | 15 HP |
| Voltage | 208-230V |
| Phase | Three Phase |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | 50.5 CFM @ 100 PSI |
| Air Delivery | 44.6 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Pump Type | Two-Stage Cast Iron |
| Dimensions | 77" × 27" × 56" |
| Weight Approximately | 886 lbs |
| Warranty | 2 Years Bumper-to-Bumper |
