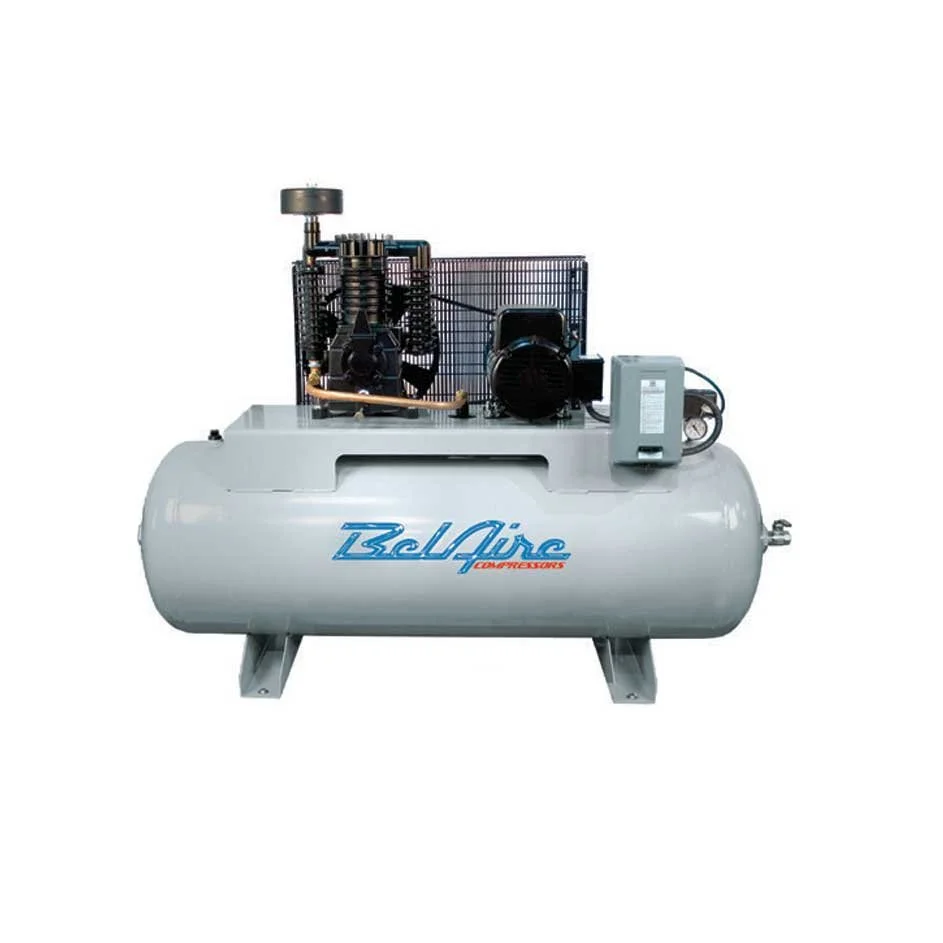

BelAire 338H Air Compressor – 10HP Horizontal
$1,340.00
The BelAire 338H is engineered for long service life and dependable operation in demanding work environments. Its cast iron pump construction provides superior durability, while the two-stage compression design improves efficiency and airflow delivery. The large 80-gallon receiver tank helps reduce compressor cycling, ensuring a stable air supply for continuous operation.
In Stock
Description
BelAire 338H Air Compressor – Heavy-Duty 5 HP Horizontal Industrial Air Compressor
The BelAire 338H Air Compressor is a professional-grade two-stage industrial air compressor designed for workshops, manufacturing facilities, automotive service centers, and commercial operations that require reliable compressed air performance. Built with a durable 5 HP three-phase motor, heavy-duty cast iron two-stage pump, and an 80-gallon horizontal ASME-certified tank, the BelAire 338H delivers consistent airflow and pressure for demanding applications. It provides 18.5 CFM at 100 PSI and 16.6 CFM at 175 PSI, making it ideal for powering multiple pneumatic tools and industrial equipment.
Key Features
- Powerful 5 HP industrial-duty electric motor
- 208-230V three-phase power supply
- Two-stage air compression system
- 80-gallon horizontal ASME-certified tank
- 18.5 CFM at 100 PSI
- 16.6 CFM at 175 PSI
- Maximum operating pressure of 175 PSI
- Heavy-duty cast iron cylinder construction
- Belt-driven pump for efficient cooling
- Magnetic starter included
- Fully enclosed high-flow belt guard
- Oil level sight glass for easy maintenance
- Start-stop pressure switch control
- 2-year bumper-to-bumper warranty
Ideal Applications
The BelAire 338H is suitable for:
- Automotive repair shops
- Tire service centers
- Manufacturing facilities
- CNC machining operations
- Metal fabrication workshops
- Woodworking shops
- Fleet maintenance facilities
- Agricultural equipment service
- Industrial maintenance departments
- Commercial pneumatic systems
Benefits of the BelAire 338H
The BelAire 338H combines industrial-grade durability, efficient airflow production, and reliable operation in a compact horizontal configuration. The integrated magnetic starter, cast iron pump, and ASME-certified air tank make it a trusted solution for businesses that require dependable compressed air every day. Its high-performance design ensures consistent pressure delivery while minimizing maintenance requirements.
| Specification | Details |
|---|---|
| Model BelAire | 338H |
| Motor Power | 5 HP |
| Voltage | 208-230V |
| Phase | Three Phase |
| Compressor Type | Two-Stage |
| Tank Capacity | 80 Gallons |
| Tank Configuration | Horizontal |
| Air Delivery | 18.5 CFM @ 100 PSI |
| Air Delivery | 16.6 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Pump Material | Solid Cast Iron |
| Drive Type | Belt Drive |
| Air Outlet | 3/4 Inch |
| Dimensions | 71" × 24" × 49" |
| Weight Approximately | 470–480 lbs |
| Warranty | 2 Years Bumper-to-Bumper |
