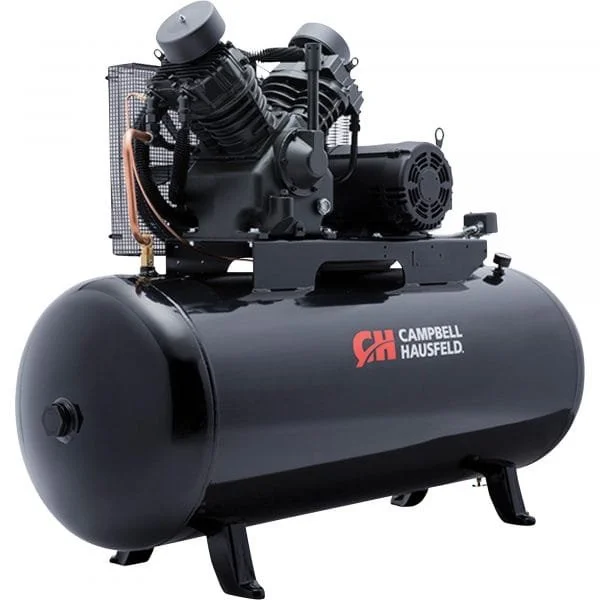

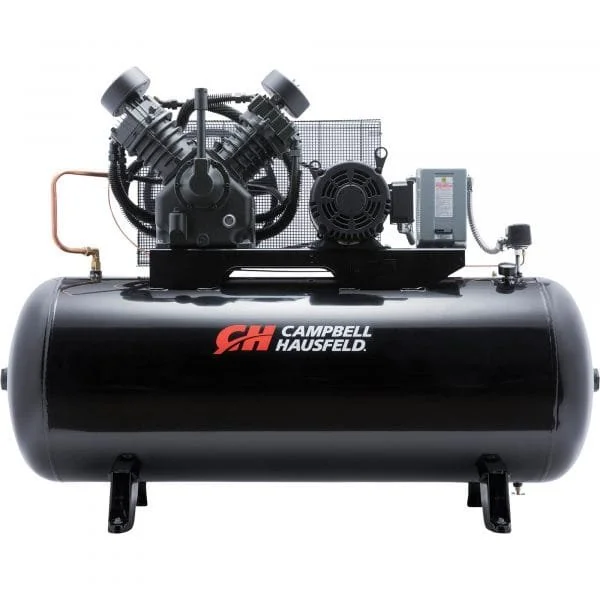

Campbell Hausfeld CE8001 – 10 HP Two-Stage Air Compressor
$1,788.00
Campbell Hausfeld CE8001: Massive 10HP two-stage compressor featuring a large horizontal storage tank and industrial motor for high-volume commercial installations.
- Drive Strength: 10.0 HP Industrial
- Flow Performance: 991 L/min (35.0 CFM)
- Max Pressure: 175 PSI (12 Bar)
- Tank Dimension: 120 Gallon Horizontal
- Logic Setup: Single Phase 230V
In Stock
Description
Campbell Hausfeld CE8001 Air Compressor – 10 HP Two-Stage Industrial Air Compressor (120 Gallon Horizontal)
The Campbell Hausfeld CE8001 is a heavy-duty industrial-grade two-stage piston air compressor designed for automotive workshops, manufacturing plants, fabrication facilities, and other demanding commercial environments. It is equipped with a powerful 10 HP three-phase electric motor, a robust cast iron two-stage pump, and a large 120-gallon ASME-certified horizontal tank, making it suitable for continuous-duty compressed air applications.
This model delivers approximately 34 CFM at 175 PSI, providing strong airflow for running multiple air tools, production equipment, and industrial systems simultaneously.
Key Features
- 10 HP industrial electric motor (208–230V / 460V, three-phase)
- Heavy-duty cast iron two-stage pump
- Large 120-gallon ASME-certified horizontal tank
- High airflow: ~34 CFM at 175 PSI
- Maximum pressure: 175–200 PSI rated tank system (ASME certified)
- Pre-wired magnetic starter for safe motor control
- Low-RPM pump design for extended service life
- Industrial belt-driven system for cooling efficiency
- Built for continuous-duty commercial and industrial operation
- Rated for long service life (up to 15,000+ hours pump life)
Industrial Performance Overview
The CE8001 is built for serious continuous air demand, not intermittent shop use. Its two-stage compression system improves efficiency by reducing heat buildup, while the low-RPM cast iron pump is designed for long lifespan and stable output under load.
With ~34 CFM output, it can comfortably support:
- Multiple impact wrenches
- Air ratchets and grinders
- Medium-duty blasting setups
- Production line air tools
- Automotive repair bays running simultaneously
Ideal Applications
- Automotive repair shops
- Tire service centers
- CNC machining support systems
- Metal fabrication workshops
- Industrial maintenance facilities
- Manufacturing production lines
- Heavy-duty multi-user air systems
| Specification | Details |
|---|---|
| Model | CE8001 |
| Brand | Campbell Hausfeld |
| Motor Power | 10 HP |
| Voltage | 208–230V / 460V |
| Phase | Three Phase |
| Pump Type | Two-Stage Cast Iron |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | ~34 CFM @ 175 PSI |
| Max Pressure | 175 PSI (operating), ASME tank rated up to :~200 PSI |
| Drive Type | Belt Drive |
| Starter | Magnetic Starter Included |
| Application | Industrial / Automotive / Manufacturing |
