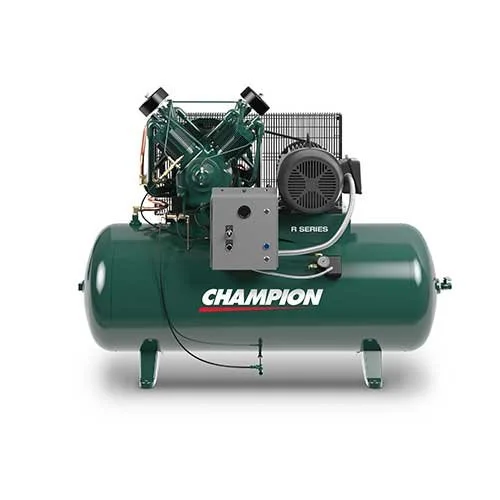

Champion HR20-24 Air Compressor – 20HP R-Series
$6,889.00
The Champion HR20-24 is designed for medium-to-large industrial facilities requiring dependable compressed air throughout multiple work shifts. The combination of the R-70 compressor pump and large 240-gallon receiver tank helps maintain stable system pressure while reducing compressor cycling.
Its low-RPM design offers several operational advantages:
- Reduced operating temperatures
- Lower vibration levels
- Longer bearing and piston life
- Increased compressor efficiency
- Reduced maintenance requirements
- Extended equipment lifespan
The oversized air receiver provides additional storage capacity, making the system highly effective for applications with fluctuating air demand.
In Stock
Description
Champion HR20-24 Air Compressor – 20 HP R-Series Industrial Two-Stage Air Compressor (240 Gallon)
The Champion HR20-24 Air Compressor is a heavy-duty R-Series two-stage reciprocating air compressor engineered for industrial manufacturing, automotive production, fabrication facilities, and centralized compressed air systems. Equipped with a powerful 20 HP three-phase electric motor, Champion’s rugged R-70 cast iron compressor pump, and a large 240-gallon ASME-certified horizontal air receiver tank, this compressor delivers outstanding airflow, durability, and efficiency for continuous-duty industrial operations.
Designed to provide reliable compressed air under demanding conditions, the HR20-24 produces approximately 77.8 CFM at 175 PSI, making it ideal for facilities operating multiple pneumatic tools, CNC machines, automated production lines, and air-powered equipment simultaneously. Its low-speed pump operation minimizes heat buildup and wear, ensuring years of dependable performance.
Key Features
- 20 HP industrial-duty three-phase electric motor
- Heavy-duty Champion R-70 two-stage cast iron compressor pump
- Air delivery: 77.8 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Large 240-gallon ASME-certified horizontal air receiver tank
- Low-speed pump design for cooler operation and extended service life
- Splash-lubricated crankcase system
- High-efficiency disc valve technology
- Deep-finned intercooler for enhanced cooling
- Centrifugal loadless starting system
- Industrial-grade cast iron cylinders and crankcase
- Continuous-duty industrial operation
- Belt-driven compressor configuration
R-Series Technology Benefits
Heavy-Duty Cast Iron Construction
Champion R-Series compressors are manufactured with durable cast iron cylinders, crankcases, and heads for exceptional industrial reliability.
High Airflow Performance
The R-70 pump delivers nearly 78 CFM at 175 PSI, supporting demanding industrial equipment and multi-user compressed air systems.
Efficient Cooling System
Deep-finned intercoolers and optimized airflow reduce discharge temperatures and improve overall compressor efficiency.
Proven Reliability
The R-Series platform has been trusted in industrial environments for decades due to its robust design and long service life.
Ideal Applications
- Manufacturing facilities
- Automotive production plants
- CNC machining centers
- Metal fabrication shops
- Industrial maintenance operations
- Packaging facilities
- Assembly lines
- Pneumatic tool systems
- Centralized compressed air networks
| Specification | Details |
|---|---|
| Model | Champion HR20-24 |
| Series | R-Series |
| Motor Power | 20 HP |
| Pump Model | R-70 |
| Compressor Type | Two-Stage Reciprocating |
| Lubrication | Splash Lubricated |
| Air Delivery | 77.8 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 240 Gallons |
| Tank Orientation | Horizontal |
| Pump Speed | Approximately 664 RPM |
| Voltage | 208V / 230V / 460V Three-Phase |
| Drive Type | Belt Driven |
| Duty Cycle | Continuous Industrial Service |
| Application | Manufacturing & Industrial Operations |
