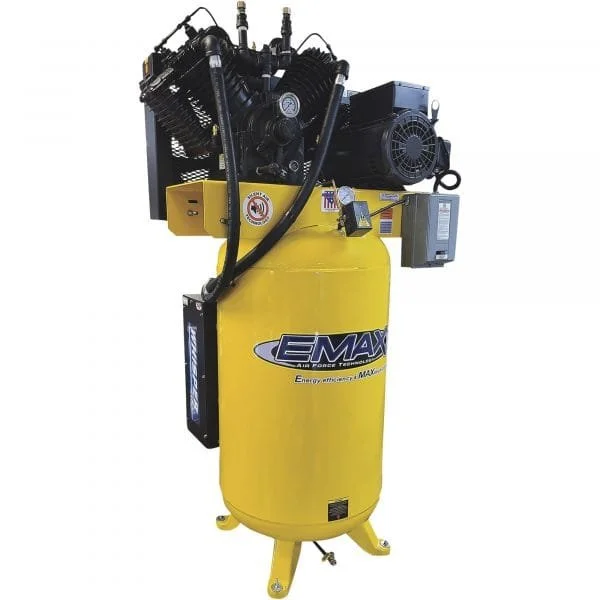

EMAX ES10V080V1 – 10 HP Silent Air 2-Stage Vertical Compressor
$1,332.00
The ES10V080V1 is designed for high-output shop environments where noise reduction is important. Compared to standard 10 HP piston compressors, it offers:
- Much lower perceived noise (intake silencing system)
- Stable airflow for multiple pneumatic tools
- Reduced vibration due to low-RPM pump operation
- Strong 38 CFM output suitable for demanding shop tasks
Typical applications include:
- Automotive repair shops
- Tire and service centers
- Fabrication and welding shops
- Maintenance facilities
- Multi-tool pneumatic workstations
In Stock
Description
EMAX ES10V080V1 – 10 HP Silent Air 2-Stage Vertical Compressor (80 Gallon)
The EMAX ES10V080V1 is a heavy-duty 10 HP industrial “Silent Air” 2-stage vertical air compressor designed for professional workshops, automotive facilities, and light industrial environments that require high airflow, reduced noise, and continuous-duty performance capability.
It is part of EMAX’s ES (Silent Air / Whisper Series), which uses a noise-suppression intake system + low-RPM cast iron pump design to significantly reduce operating sound levels compared to standard piston compressors.
This model features a 10 HP single-phase electric motor, a two-stage pressure-lubricated cast iron pump, and an 80-gallon ASME-certified vertical tank, delivering approximately 38 CFM at 100 PSI with a maximum pressure of 175 PSI.
Key Features
- 10 HP industrial electric motor (208–230V single phase)
- Advanced Silent Air / Whisper intake noise reduction system
- Heavy-duty two-stage cast iron, pressure-lubricated pump
- Air delivery: ~38 CFM @ 100 PSI
- Maximum pressure: 175 PSI
- 80-gallon ASME-certified vertical steel tank
- Low-RPM industrial pump design (high durability, reduced wear)
- Magnetic starter (common configuration)
- Heavy-duty belt drive system
- Built-in intercooling and aftercooling for cooler air output
- Designed for continuous workshop operation with reduced noise footprint
Advantages
Silent Air Technology
Intake silencer reduces noise by routing air through baffle chambers, improving operator comfort.
High Airflow (38 CFM Class)
Supports multiple tools running simultaneously.
Heavy-Duty Cast Iron Pump
Designed for long service life and continuous shop use.
80-Gallon Tank Stability
Reduces pressure drops and compressor cycling.
Ideal Applications
- Automotive workshops
- Light industrial facilities
- Fabrication shops
- Maintenance departments
- Paint and finishing operations
- Multi-user pneumatic systems
| Specification | Details |
|---|---|
| Model | EMAX ES10V080V1 |
| Motor Power | 10 HP |
| Phase | Single Phase (208–230V) |
| Pump Type | Two-stage cast iron, pressure lubricated |
| Air Delivery | ~38 CFM @ 100 PSI |
| Max Pressure | 175 PSI |
| Tank Capacity | 80 Gallons |
| Tank Orientation | Vertical |
| Duty Cycle | Industrial / Continuous workshop use |
| Noise System | Silent Air intake suppression |
