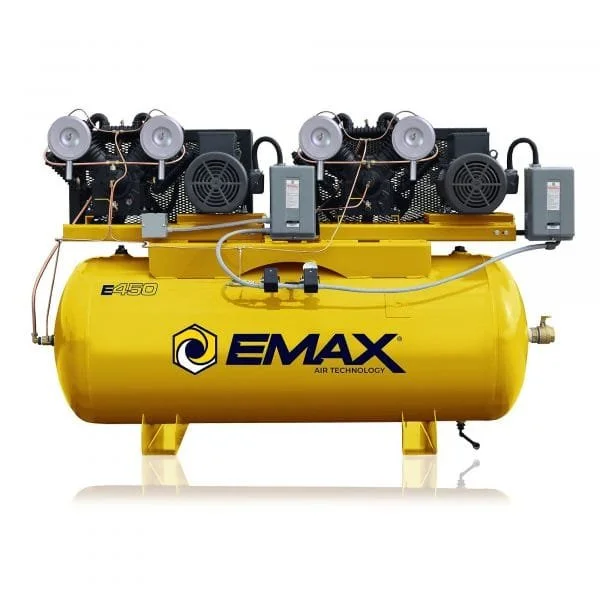

EMAX ESP10D240V3 – Silent V4 3PH Horizontal Dual Piston Compressor
$4,244.00
EMAX ESP10D240V3: The flagship of the dual-pump series, this 3-phase 240-gallon unit offers the highest storage capacity and performance for heavy-duty industrial automation.
- Motor Specs: 10.0 HP 3-Phase
- Flow Capacity: 962 L/min (34 CFM @ 100 PSI)
- Force Rating: 175 PSI (12 Bar)
- Cylinder Size: 240 Gallon Horizontal
- Elite Module: Premium Silent Air Baffle System
In Stock
Description
Emax ESP10D240V3 | 68 CFM at 90 PSI Industrial Delivery Analysis
The Emax ESP10D240V3 Silent V4 is a massive horizontal dual-piston system designed for high-capacity manufacturing requiring extreme air reserves and redundancy. Utilizing a 240-gallon tank and three-phase power, this dual-pump configuration provides unmatched pneumatic overhead, delivering a steady 68 CFM at 90 PSI to support entire production lines and large-scale pneumatic grids.
This dual-pump setup features pressure lubrication and an electronic automatic drain valve to handle intensive 60% duty cycles across a massive storage volume. Since the unit lacks a low oil shutdown feature, maintenance crews must prioritize regular lubricant inspections to prevent terminal air-end friction and ensure maximum thermal stability during peak industrial operation hours.
Key Features: Emax ESP10D240V3
- Dual 10HP pumps produce 68 CFM at 90 PSI.
- Massive 240-gallon horizontal tank provides exceptional air reserves.
- Silent V4 technology significantly lowers noise in industrial bays.
- Electronic automatic drain valve automates critical tank maintenance.
- Three-phase 230/460V configuration optimizes high-torque electrical efficiency.
- Large 2 inch NPT outlet prevents restrictive airflow bottlenecks.
- Pressure lubrication system protects internal components under load.
- Two-stage pump design allows for 175 Max PSI.
- Solid cast iron pump material ensures extreme industrial durability.
- Dual-pump architecture provides built-in system redundancy for facilities.
High-Volume Manufacturing Operations
Perfect for heavy-duty assembly lines, large fabrication shops, and centralized air systems. This model is backed by a 1 year warranty. Compare our horizontal air compressors to match this 240-gallon capacity with your facility’s specific SCFM requirements.
| Model | ESP10D240V3 |
|---|---|
| Brand | Emax |
| Warranty | 1 year |
| Ship Weight | 1950.0 lbs |
| Horsepower | 10 HP |
| Air Tank Size | 240 Gal |
| Volts | 230/460 |
| Stage | 2 |
| CFM at | 90 PSI 68 |
| Max. PSI | 175 |
| CFM at | 40 PSI 99 |
| CFM at | Max. PSI 64 |
| Working Pressure | 145 PSI |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 2 in. NPT |
| Motor RPM | 1,750 |
| Motor Phase | 3 |
| Amps | 48 |
| Duty Cycle | 60 % |
| Tank Fill Time | 4 min |
| Fuel Capacity | 0 Gal |
| Pump Material | Cast Iron |
| Oil Required | Yes |
| Low Oil Shutdown | No |
| Lubrication System | Pressure |
| Pressure Gauge | Yes |
| Electronic Drain Valve | Yes |
| Drain Type | Automatic |
| After Cooler Included | No |
| Air Dryer | None |
| Tank Orientation | Horizontal |
| Product Weight | 1950.0000 lb |
| Dimensions L x W x H (in.) | 96.0 x 42.0 x 64.0 in |
