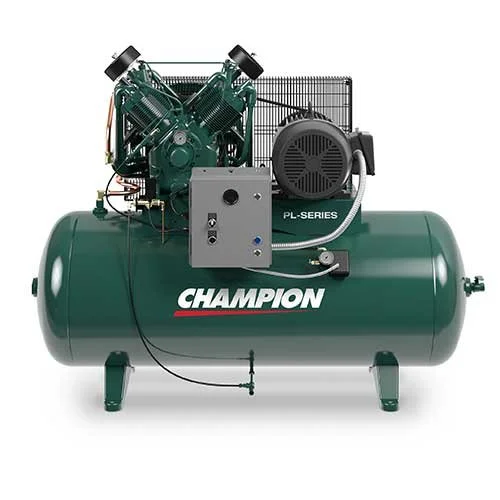

Champion HPL7DF-12 Air Compressor – 7.5HP PL-Series
$6,400.00
The Champion HPL7DF-12 is designed for businesses that require dependable compressed air throughout the workday without sacrificing reliability. The duplex configuration offers operational flexibility by alternating compressor operation during normal usage, reducing wear and extending equipment life. During periods of high demand, both compressors can operate simultaneously to maximize airflow output.
The pressure-lubricated PL-Series pumps continuously circulate oil to critical components such as crankshafts, bearings, and connecting rods, providing superior protection compared to traditional splash-lubricated systems.
With approximately 50–52 CFM output, the HPL7DF-12 can support:
- Multiple pneumatic tools simultaneously
- Automotive repair and tire service operations
- CNC machinery support systems
- Fabrication and welding workshops
- Industrial maintenance departments
- Light manufacturing production lines
In Stock
Description
Champion HPL7DF-12 Air Compressor – 7.5 HP PL-Series Duplex Pressure Lubricated Industrial Compressor (120 Gallon)
The Champion HPL7DF-12 Air Compressor is a high-performance PL-Series duplex pressure-lubricated reciprocating compressor system designed for automotive service centers, manufacturing facilities, maintenance departments, and industrial workshops requiring dependable compressed air with built-in redundancy. This model features dual 7.5 HP industrial electric motors, two heavy-duty PL-Series two-stage cast iron pumps, and a 120-gallon ASME-certified horizontal air receiver tank.
Engineered for continuous-duty operation, the HPL7DF-12 utilizes Champion’s advanced pressure lubrication system, ensuring critical internal components receive a constant supply of filtered oil for maximum durability and extended service life. The duplex configuration allows compressors to alternate during normal operation or run simultaneously during peak air demand.
Delivering approximately 50–52 CFM at 175 PSI, this compressor provides reliable airflow for multiple workstations and demanding industrial applications.
Key Features
- Duplex configuration with 2 × 7.5 HP industrial electric motors
- Total system power: 15 HP
- Dual PL-Series pressure-lubricated two-stage cast iron pumps
- Air delivery: ~50–52 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- 120-gallon ASME-certified horizontal air receiver tank
- Full pressure lubrication system for superior pump protection
- Hydraulic unloading system for loadless starting
- Disc valve technology for increased efficiency and airflow stability
- Automatic alternator control for balanced compressor operation
- Heavy-duty cast iron construction
- Continuous-duty industrial design
- Reduced maintenance requirements and extended service intervals
Advantages of the PL-Series Duplex Design
Built-In Redundancy
Dual compressors ensure continued operation if one unit requires maintenance or servicing.
Pressure Lubrication Technology
Continuous oil circulation reduces wear, lowers operating temperatures, and extends pump life.
Increased Air Availability
Both compressor pumps can operate together to meet peak compressed air demands.
Lower Operating Costs
Alternating operation helps distribute wear evenly across both compressor units, reducing maintenance expenses over time.
Ideal Applications
- Automotive repair facilities
- Fleet maintenance workshops
- Manufacturing plants
- CNC machining operations
- Metal fabrication shops
- Industrial maintenance departments
- Packaging facilities
- Multi-station pneumatic tool systems
| Specification | Details |
|---|---|
| Model | Champion HPL7DF-12 |
| Series | PL-Series Duplex |
| Motor Power | 7.5 HP × 2 (15 HP Total) |
| Pump Type | Dual Two-Stage Cast Iron |
| Lubrication | Full Pressure Lubricated |
| Air Delivery | ~50–52 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Voltage | 208/230V, 460V, or 575V Three-Phase |
| Drive Type | Belt Driven |
| Duty Cycle | Continuous Duty |
| Application | Industrial / Manufacturing / Automotive |
