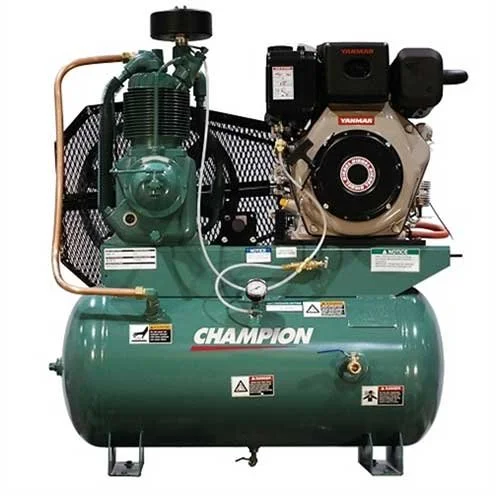

Champion HDPL5-3Y Air Compressor – 9HP Diesel PL
$5,322.00
The HDPL5-3Y is built for serious field duty, where compressors must operate reliably under vibration, dust, heat, and uneven terrain. Its pressure lubrication system continuously feeds oil to critical internal components, significantly improving durability compared to standard splash-lubricated compressors.
The 30-gallon tank keeps the system compact for truck mounting, while still providing enough reserve air for impact tools, grinders, and intermittent blasting work.
This makes it a strong choice for contractors who need true off-grid compressed air power with industrial-grade reliability.
In Stock
Description
Champion HDPL5-3Y Air Compressor – 9 HP Diesel PL-Series Heavy-Duty Pressure Lubricated Compressor
The Champion HDPL5-3Y Air Compressor is a rugged industrial diesel-powered PL-Series compressor package designed for extreme-duty applications such as construction sites, mining operations, oil & gas field service, and remote industrial maintenance. It combines a 9.1 HP class Yanmar diesel engine, Champion’s PL-Series pressure-lubricated two-stage cast iron pump, and a 30-gallon ASME-certified tank system, delivering high airflow performance in a compact mobile configuration.
This model is engineered for continuous operation in harsh environments, where reliability, off-level operation capability, and long service life are critical.
It produces approximately 21.7 CFM at 175 PSI, making it suitable for heavy pneumatic tools and field service operations.
Key Features
- 9.1 HP Yanmar diesel engine (industrial-grade, field-proven)
- Heavy-duty PL-Series pressure-lubricated two-stage cast iron pump
- Designed for extreme-duty continuous operation and remote use
- Air delivery: ~21.7 CFM @ 175 PSI
Maximum pressure: 175 PSI (up to 250 PSI PL-rated capability depending on configuration)
- Pressure lubrication system for crankshaft and bearing protection
- Hydraulic unloader for smooth, loadless starting
- External spin-on oil filtration system for improved pump life
- Disc valve technology for stable airflow and efficiency
- Built for off-level operation in rugged jobsite conditions
- ASME-coded receiver tank (typically 30 gallons)
Ideal Applications
- Construction and civil engineering sites
- Mining and quarry operations
- Oil & gas field service
- Pipeline and infrastructure maintenance
- Mobile service trucks
- Heavy equipment repair in remote areas
| Specification | Details |
|---|---|
| Model | Champion HDPL5-3Y |
| Series | PL-Series (Pressure Lubricated) |
| Engine | 9.1 HP Yanmar Diesel |
| Pump Type | Two-Stage Cast Iron (PL15A) |
| Air Delivery | ~21.7 CFM @ 175 PSI |
| Max Pressure | 175 PSI (PL system capable up to higher ratings in some configs) |
| Tank Capacity | 30 Gallons |
| Starting System | Electric start (typical configuration) |
| Application | Industrial / Construction / Remote Field |
