Campbell Hausfeld CE8003 – 15 HP Two-Stage Air Compressor
$2,100.00
Campbell Hausfeld CE8003: Elite 15HP two-stage air compressor engineered for 3-phase industrial power, delivering maximum CFM for the most intensive pneumatic workflows.
- Engine Specs: 15.0 HP Two-Stage
- Airflow Volume: 1415 L/min (50.0 CFM)
- Force Rating: 175 PSI (12 Bar)
- Cylinder Capacity: 120 Gallon Horizontal
- Grid Spec: 230/460V 3-Phase
In Stock
Description

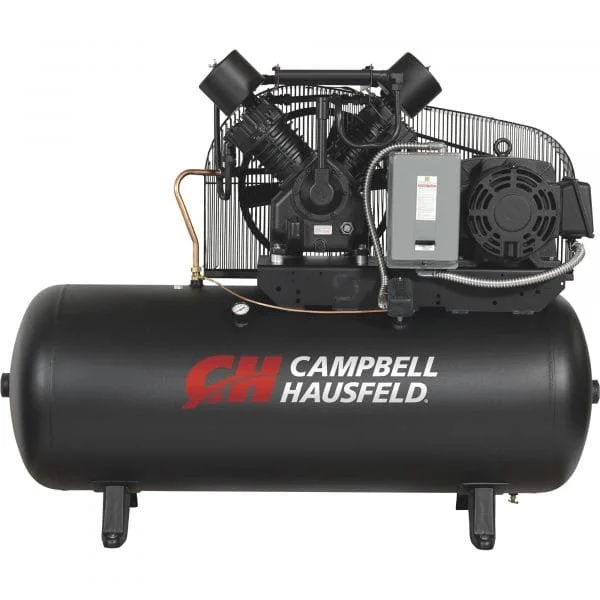

Campbell Hausfeld CE8003 Air Compressor – 15 HP Two-Stage Industrial Air Compressor (120 Gallon Horizontal)
The Campbell Hausfeld CE8003 is a heavy-duty industrial-grade two-stage piston air compressor designed for manufacturing plants, automotive workshops, fabrication shops, and high-demand production environments. It features a powerful 15 HP three-phase electric motor, a rugged cast iron two-stage pump, and a large 120-gallon ASME-certified horizontal tank, making it suitable for continuous-duty compressed air systems in industrial operations.
This model delivers approximately 50 CFM at 175 PSI, providing strong airflow for multiple air tools, production lines, and facility-wide pneumatic systems.
Key Features
- 15 HP industrial electric motor (208–230V / 460V, three-phase)
- Heavy-duty cast iron two-stage compressor pump
- Large 120-gallon ASME-certified horizontal tank
- High airflow: ~50 CFM at 175 PSI
- Maximum pressure: 175 PSI
- Magnetic starter included for safe motor operation
- Belt-driven low-RPM design for improved durability
- Designed for continuous-duty industrial use (up to 15,000+ hours pump life rating in industrial specs)
- Fully enclosed belt guard for safety and protection
- Built for heavy fabrication, repair, and manufacturing environments
Industrial Performance Overview
The CE8003 is built for high-volume air demand environments, where multiple operators may run pneumatic tools at the same time. Its two-stage compression system improves efficiency by reducing heat and increasing air density output, while the large 120-gallon tank stabilizes pressure during peak usage.
With around 50 CFM output, it can comfortably support:
- Multiple impact wrenches and air ratchets
- Medium-duty blasting systems
- Production line pneumatic tools
- Automotive and fabrication shop air networks
Ideal Applications
- Manufacturing facilities
- CNC machining centers
- Automotive production and repair shops
- Metal fabrication workshops
- Industrial maintenance departments
- Packaging and assembly lines
- Multi-user compressed air systems
| Specification | Details |
|---|---|
| Model | CE8003 |
| Brand | Campbell Hausfeld |
| Motor Power | 15 HP |
| Voltage | 208–230V / 460V |
| Phase | Three Phase |
| Pump Type | Two-Stage Cast Iron |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | ~50 CFM @ 175 PSI |
| Max Pressure | 175 PSI |
| Drive Type | Belt Drive |
| Starter | Magnetic Starter Included |
| Application | Industrial / Manufacturing / Automotive |
