Campbell Hausfeld CE7051 – 5 HP Two-Stage Air Compressor
$1,001.00
Campbell Hausfeld CE7051: High-performance 5HP two-stage compressor designed for 230V single-phase grids, providing increased air pressure for heavy-duty pneumatic tools.
- Power Configuration: 5.0 HP Two-Stage
- Volume Delivery: 495 L/min (17.5 CFM)
- Compression Limit: 175 PSI (12 Bar)
- Tank Orientation: 80 Gallon Vertical
- Build Quality: 15,000 Hour Pump Rating
In Stock
Description

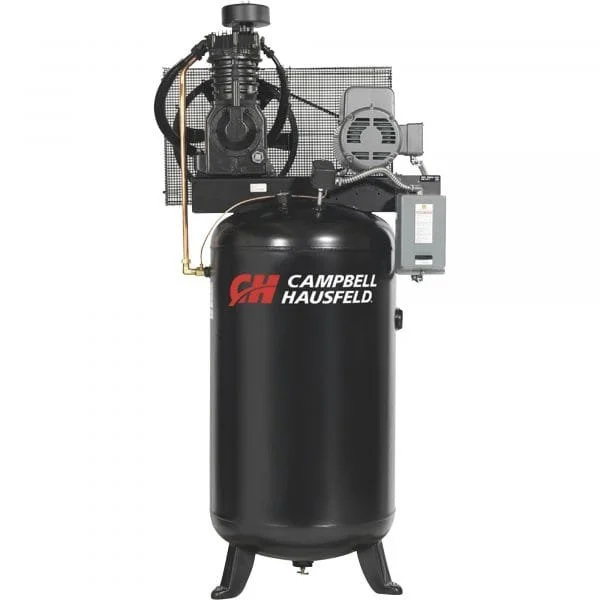

Campbell Hausfeld CE7051 Air Compressor – 5 HP Two-Stage Industrial Air Compressor (80 Gallon)
The Campbell Hausfeld CE7051 is a commercial-grade two-stage stationary air compressor designed for automotive shops, fabrication facilities, and industrial maintenance environments that require reliable and consistent compressed air. It features a 5 HP electric motor, a rugged cast iron two-stage pump, and an 80-gallon ASME-certified tank, making it suitable for continuous-duty professional applications.
This model delivers approximately 16.4–17.2 CFM at 90–175 PSI and reaches a maximum pressure of 175 PSI, providing enough airflow to run multiple air tools in a professional workshop setting.
Key Features
- 5 HP industrial electric motor (208–230V or 460V, three-phase)
- Heavy-duty two-stage cast iron pump
- Large 80-gallon ASME-certified tank
- Air delivery: ~16.4 CFM @ 175 PSI
- Maximum pressure: 175 PSI
- Belt-driven low-RPM design for durability
- Magnetic motor starter included
- Built for heavy commercial and industrial duty cycles
- Long-life pump rated for extended operational hours
Performance Overview
The CE7051 is built for serious shop use, not light-duty homeowner applications. Its two-stage pump design compresses air more efficiently, reducing heat buildup and improving long-term durability compared to single-stage units.
With roughly 16+ CFM output, it can comfortably support:
- Impact wrenches (intermittent use)
- Air ratchets
- Paint guns (mid-duty setups)
- Tire service tools
- Small blasting or fabrication tasks (with airflow management)
It is not designed for high-demand continuous tools like large sandblasters or industrial spray lines.
Ideal Applications
- Automotive repair shops
- Tire and wheel service centers
- Metal fabrication workshops
- Light manufacturing facilities
- CNC support air systems
- General industrial maintenance
| Specification | Details |
|---|---|
| Model | CE7051 |
| Brand | Campbell Hausfeld |
| Motor Power | 5 HP |
| Voltage | 208–230V / 460V |
| Phase | Three Phase |
| Pump Type | Two-Stage Cast Iron |
| Tank Capacity | 80 Gallons |
| Tank Orientation | Vertical |
| Air Delivery | ~16.4–17.2 CFM |
| Max Pressure | 175 PSI |
| Drive Type | Belt Drive |
| Application | Industrial / Automotive Shop |
