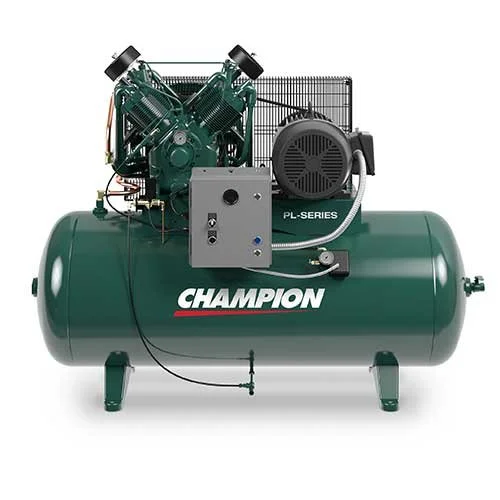

Champion HPL10-24 Air Compressor – 10HP PL-Series
$5,110.00
The HPL10-24 is built for centralized compressed air systems, not small workshop use. The large 240-gallon tank helps stabilize pressure across multiple production lines, reducing pressure drop during peak demand.
The PL-Series pressure lubrication system is a key advantage over standard splash-lubricated compressors. It continuously supplies oil to critical internal components, improving reliability and extending service life in continuous cycling environments.
This makes it suitable for facilities that require:
- Stable multi-station air distribution
- Long runtime with minimal downtime
- High durability under constant load conditions
In Stock
Description
Champion HPL10-24 Air Compressor – 10 HP PL-Series Pressure Lubricated Industrial Compressor (240 Gallon)
The Champion HPL10-24 Air Compressor is a heavy-duty industrial PL-Series pressure-lubricated two-stage piston compressor system designed for continuous-duty applications in manufacturing, automotive production, CNC machining, and large-scale workshop environments. It features a 10 HP three-phase electric motor, a rugged PL-Series cast iron two-stage pump (PL-30A platform), and a large 240-gallon ASME-certified horizontal tank, making it suitable for high-demand centralized air systems.
This model is engineered for high airflow, extended duty cycles, and maximum durability, with pressure-lubricated components designed for harsh industrial environments and 24/7 operation capability.
It delivers approximately 33.8 CFM at 175 PSI, with PL-Series capability allowing operation up to higher pressures depending on configuration.
Key Features
- 10 HP industrial three-phase electric motor
- Heavy-duty PL-Series pressure-lubricated two-stage cast iron pump (PL-30A)
- Large 240-gallon ASME-certified horizontal air receiver tank
- High airflow output: ~33.8 CFM @ 175 PSI
- Maximum pressure: 175 PSI (PL-Series capable up to higher ratings depending on setup)
- Pressure lubrication system for crankshaft and critical bearing protection
- Hydraulic unloader for smooth, loadless starting
- Disc valve technology for high efficiency and long service life
- Oversized crankcase with forced oil circulation
- Designed for continuous-duty industrial operation (24/7 capable environments)
- Heavy-duty base-mounted industrial configuration
Ideal Applications
- Manufacturing plants
- Automotive production facilities
- CNC machining operations
- Large fabrication workshops
- Industrial maintenance systems
- Multi-user compressed air networks
- Central plant air systems
| Specification | Details |
|---|---|
| Model | Champion HPL10-24 |
| Series | PL-Series (Pressure Lubricated) |
| Motor Power | 10 HP |
| Compressor | Type Two-Stage Cast Iron (Pressure Lubricated) |
| Pump Model | PL-30A |
| Tank Capacity | 240 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | ~33.8 CFM @ 175 PSI |
| Max Pressure | 175 PSI (higher PL rating depending on configuration) |
| Voltage | 208/230V or 460V (3-phase) |
| Application | Industrial / Manufacturing / Continuous Duty Systems |
