Champion HPL30-24 Air Compressor – 30HP PL-Series
$8,400.00
The HPL30-24 is designed for facilities where compressed air is a critical utility supporting production, automation, and manufacturing processes. Its 101 CFM output at 175 PSI allows it to support:
- Multiple CNC machining centers
- Automated manufacturing lines
- Industrial blast and finishing systems
- Large fabrication workshops
- Packaging and processing facilities
- Facility-wide compressed air networks
- Multi-shift production environments
The large 240-gallon receiver tank helps stabilize system pressure during peak demand, reducing compressor cycling and improving overall efficiency. Meanwhile, the pressure-lubricated PL-70 pump continuously delivers filtered oil to critical internal components, significantly extending service life under continuous operation.
In Stock
Description

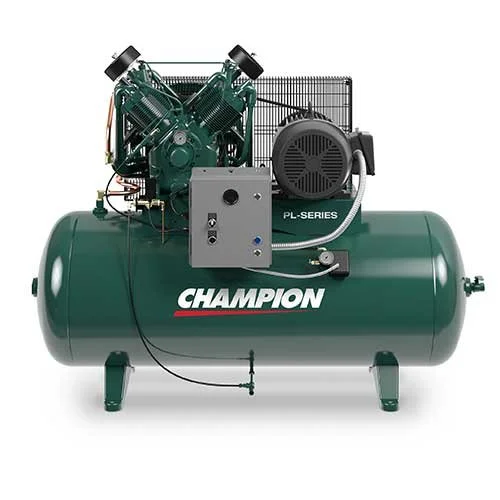

Champion HPL30-24 Air Compressor – 30 HP PL-Series Pressure Lubricated Industrial Compressor (240 Gallon)
The Champion HPL30-24 Air Compressor is one of the most powerful models in Champion’s PL-Series pressure-lubricated reciprocating compressor lineup, engineered for large-scale manufacturing facilities, automotive production plants, heavy fabrication operations, and centralized compressed air systems. Equipped with a 30 HP three-phase electric motor, a heavy-duty PL-70 two-stage pressure-lubricated cast iron pump, and a 240-gallon ASME-certified horizontal air receiver tank, this compressor is designed for maximum airflow, exceptional durability, and continuous-duty industrial performance.
Delivering approximately 101 CFM at 175 PSI, the HPL30-24 is built for facilities that demand reliable compressed air around the clock. Its pressure-lubricated design ensures superior component protection, lower wear rates, and extended service life compared to conventional splash-lubricated compressors.
Key Features
- 30 HP industrial-grade three-phase electric motor
- Heavy-duty PL-70 two-stage pressure-lubricated cast iron pump
- Large 240-gallon ASME-certified horizontal air tank
- Air delivery: 101 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI (up to 250 PSI rated capability)
- Positive displacement oil pump for continuous lubrication
- Hydraulic unloader system for loadless starting
- Built-in lubricant filtration system
- Disc valve technology for improved efficiency and airflow
- Air-cooled aftercooler for reduced moisture carryover
- Automatic tank drain system
- Vibration isolators for quieter operation
- Low oil shutdown protection
- Designed for 24/7 continuous-duty industrial service
Advantages of the PL-Series Design
Pressure Lubrication Technology
Unlike splash-lubricated compressors, the PL-Series uses a positive-displacement oil pump that continuously circulates filtered oil throughout the compressor. This reduces wear, improves cooling, and supports long-duration operation.
High Airflow Capacity
With over 100 CFM output, the HPL30-24 is capable of supporting large industrial air systems and multiple simultaneous users.
Heavy-Duty Industrial Construction
The PL-Series incorporates cast iron cylinders, disc valves, domed pistons, and industrial-grade bearings designed for maximum durability.
Reduced Maintenance and Downtime
Features such as oil filtration, low-oil protection, hydraulic unloading, and aftercooling contribute to lower maintenance requirements and improved operational reliability.
Ideal Applications
- Manufacturing plants
- Automotive assembly facilities
- Aerospace production
- CNC machining centers
- Heavy fabrication workshops
- Industrial maintenance operations
- Food and packaging plants
- Central compressed air systems
- Continuous production facilities
| Specification | Details |
|---|---|
| Model | Champion HPL30-24 |
| Series | PL-Series |
| Motor Power | 30 HP |
| Pump Model | PL-70 |
| Compressor Type | Two-Stage Pressure Lubricated |
| Tank Capacity | 240 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | 101 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI (250 PSI capability) |
| Pump Speed | Approximately 890 RPM |
| Voltage | 208/230V, 460V, or 575V Three-Phase |
| Lubrication System | Full Pressure Lubrication |
| Duty Cycle | Continuous Duty |
| Cooling | Air-Cooled Aftercooler |
| Application | Heavy Industrial Manufacturing |
