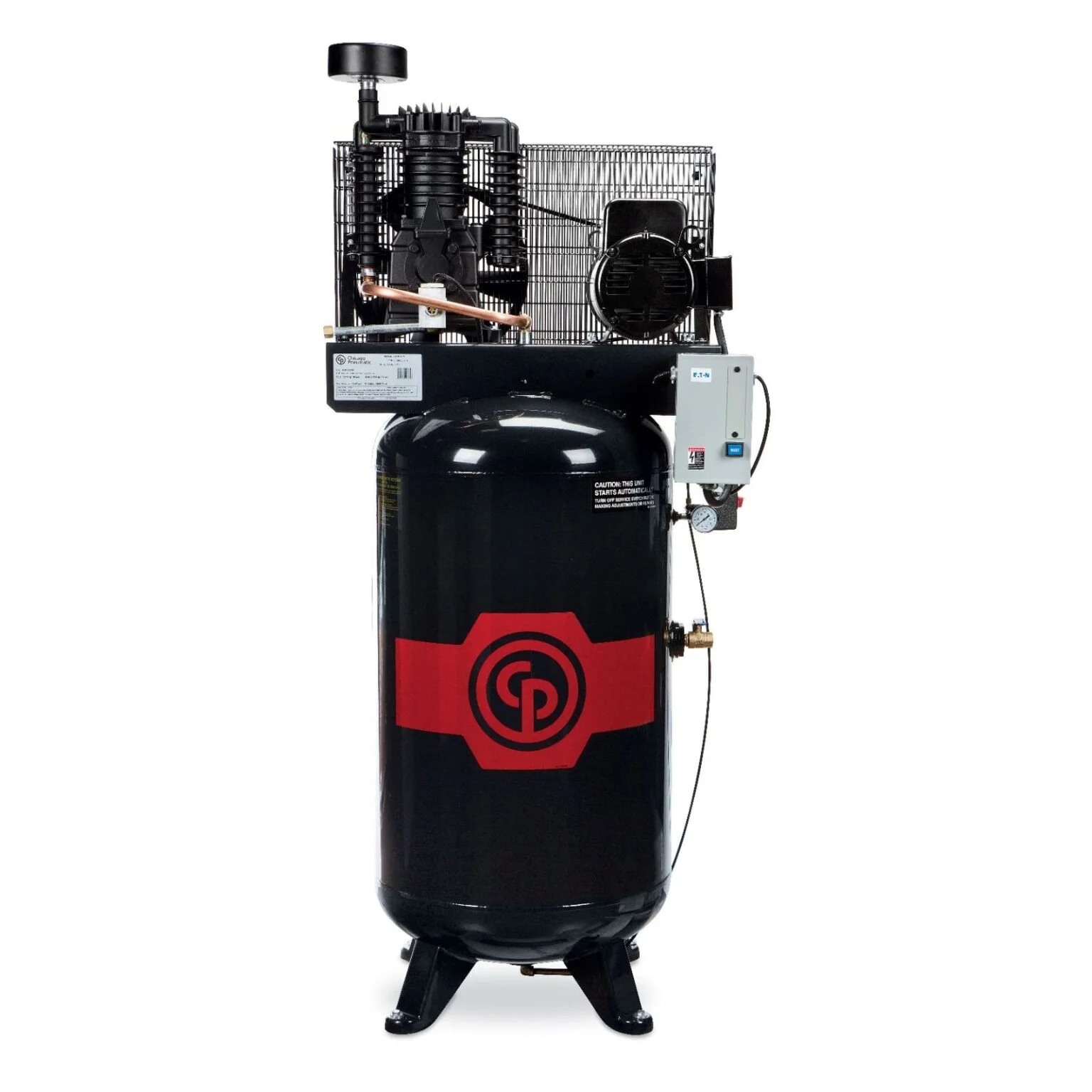

Chicago Pneumatic C583VS4 Air Compressor – 5HP Two Stage
$1,356.00
The C583VS4 is built around a slow-turning cast iron pump design, which is one of its biggest advantages over standard 5 HP compressors. Instead of pushing high RPM for output, it prioritizes:
- Lower operating temperature
- Reduced internal wear
- Improved air dryness (less condensation buildup)
- Longer service intervals
This makes it especially suitable for shops where the compressor runs frequently throughout the day.
In Stock
Description
Chicago Pneumatic C583VS4 Air Compressor – 5 HP Two-Stage Industrial Air Compressor (80 Gallon)
The Chicago Pneumatic C583VS4 Air Compressor is a premium 5 HP two-stage reciprocating piston compressor from Chicago Pneumatic’s Iron Series, designed for professional workshops, automotive service centers, and light industrial applications requiring reliable compressed air, long service life, and stable performance.
This model features a 5 HP three-phase motor, an all-cast iron slow-speed pump, and an 80-gallon ASME-certified vertical air receiver tank, making it a compact but highly durable solution for continuous-duty air demand environments.
With an airflow output of approximately 18 CFM at 100 PSI (around 24 CFM at 175 PSI max system capacity depending on configuration), the C583VS4 is engineered for efficiency, low heat generation, and extended pump life.
Key Features
- 5 HP industrial-grade electric motor (3-phase)
- Heavy-duty two-stage cast iron compressor pump
- Air delivery: ~18 CFM @ 100 PSI (up to ~24 CFM @ 175 PSI system capability)
- Maximum operating pressure: 175 PSI
- 80-gallon ASME-certified vertical air receiver tank
- Slow-speed pump design for reduced heat and longer lifespan
- Disc valve technology for improved efficiency and serviceability
- Finned intercooler system for cooler second-stage compression
- Magnetic motor starter included (industrial control package)
- Built for continuous-duty industrial service
Industrial Performance Overview
The C583VS4 is built around a slow-turning cast iron pump design, which is one of its biggest advantages over standard 5 HP compressors. Instead of pushing high RPM for output, it prioritizes:
- Lower operating temperature
- Reduced internal wear
- Improved air dryness (less condensation buildup)
- Longer service intervals
This makes it especially suitable for shops where the compressor runs frequently throughout the day.
Typical applications include:
- Automotive repair bays
- Tire service operations
- Light fabrication shops
- Maintenance workshops
- Small manufacturing cells
- General pneumatic tool systems
Iron Series Advantages
Cast Iron Durability
Heavy-duty cast iron cylinders and crankcase built for long service life.
Two-Stage Efficiency
Air is compressed in two stages, improving efficiency and reducing heat compared to single-stage units.
Industrial Motor System
Baldor-style industrial motors (in many configurations) provide reliable starting and stable performance.
Service-Friendly Design
Disc valves and accessible components reduce maintenance downtime.
Ideal Applications
- Automotive workshops
- Tire service centers
- Industrial maintenance departments
- Light manufacturing facilities
- Metal fabrication shops
- Pneumatic tool systems
| Specification | Details |
|---|---|
| Model | Chicago Pneumatic C583VS4 |
| Series | Iron Series |
| Motor Power | 5 HP |
| Pump Type | Two-Stage Cast Iron Piston |
| Lubrication | Splash Lubricated |
| Air Delivery | ~18 CFM @ 100 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 80 Gallons |
| Tank Type | Vertical |
| Voltage | 208–230V / 460V (3-phase depending version) |
| Duty Cycle | Continuous Industrial Use |
| Application | Workshop / Automotive / Light Industrial |
