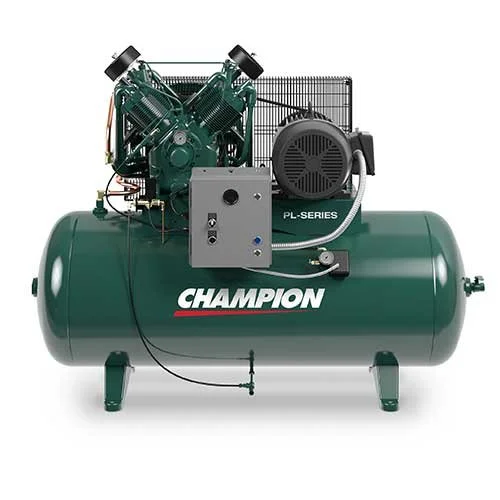

Champion HPL15F-12 Air Compressor – 15HP PL-Series
$4,990.00
The HPL15F-12 is designed for high-demand compressed air systems where uptime and reliability are critical. Its PL-Series pressure lubrication system ensures continuous oil flow to bearings and internal components, significantly improving durability compared to standard splash-lubricated compressors.
With a large 120-gallon tank and high CFM output, it is capable of supporting:
- Multiple production lines simultaneously
- CNC machining and automated systems
- High-cycle pneumatic tool environments
- Continuous shop air distribution systems
The system is optimized for reduced downtime, lower heat buildup, and stable long-term operation in industrial environments.
In Stock
Description
Champion HPL15F-12 Air Compressor – 15 HP PL-Series Pressure Lubricated Industrial Compressor (120 Gallon)
The Champion HPL15F-12 Air Compressor is a heavy-duty industrial PL-Series duplex-style pressure-lubricated reciprocating compressor system designed for manufacturing plants, automotive facilities, fabrication shops, and continuous-duty compressed air networks. It features a 15 HP three-phase electric motor, Champion’s PL-30A pressure-lubricated two-stage cast iron pump system, and a 120-gallon ASME-certified horizontal tank, delivering high airflow and long service life in demanding industrial environments.
This model is engineered for continuous operation, high reliability, and extended maintenance intervals, making it suitable for facilities that require stable compressed air across multiple workstations.
It delivers approximately 48–55 CFM at 175 PSI, depending on configuration and RPM settings, placing it in the high-output industrial reciprocating class.
Key Features
- 15 HP industrial three-phase electric motor
- Heavy-duty PL-Series pressure-lubricated two-stage cast iron pump (PL-30A platform)
- High airflow output: ~48–55 CFM @ 175 PSI
- Maximum pressure: 175 PSI (PL-Series capable up to higher ratings depending on setup)
- 120-gallon ASME-certified horizontal air receiver tank
- Positive displacement oil pump for continuous lubrication of critical components
- Hydraulic unloader for loadless starting and reduced motor stress
- Disc valve system for improved efficiency and airflow stability
- External spin-on oil filtration system (configuration dependent)
- Built for continuous-duty industrial operation (24/7 capable environments)
- Heavy-duty base-mounted configuration for plant integration
Ideal Applications
- Manufacturing plants
- Automotive production and service centers
- CNC machining and fabrication shops
- Industrial maintenance facilities
- Packaging and assembly lines
- Multi-user compressed air systems
- Continuous-duty production environments
| Specification | Details |
|---|---|
| Model | Champion HPL15F-12 |
| Series | PL-Series (Pressure Lubricated) |
| Motor Power | 15 HP |
| Pump Type | PL-30A Two-Stage Cast Iron |
| Air Delivery | ~48–55 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Voltage | 208/230V or 460V (3-phase) |
| Application | Industrial / Manufacturing / Continuous Duty Systems |
