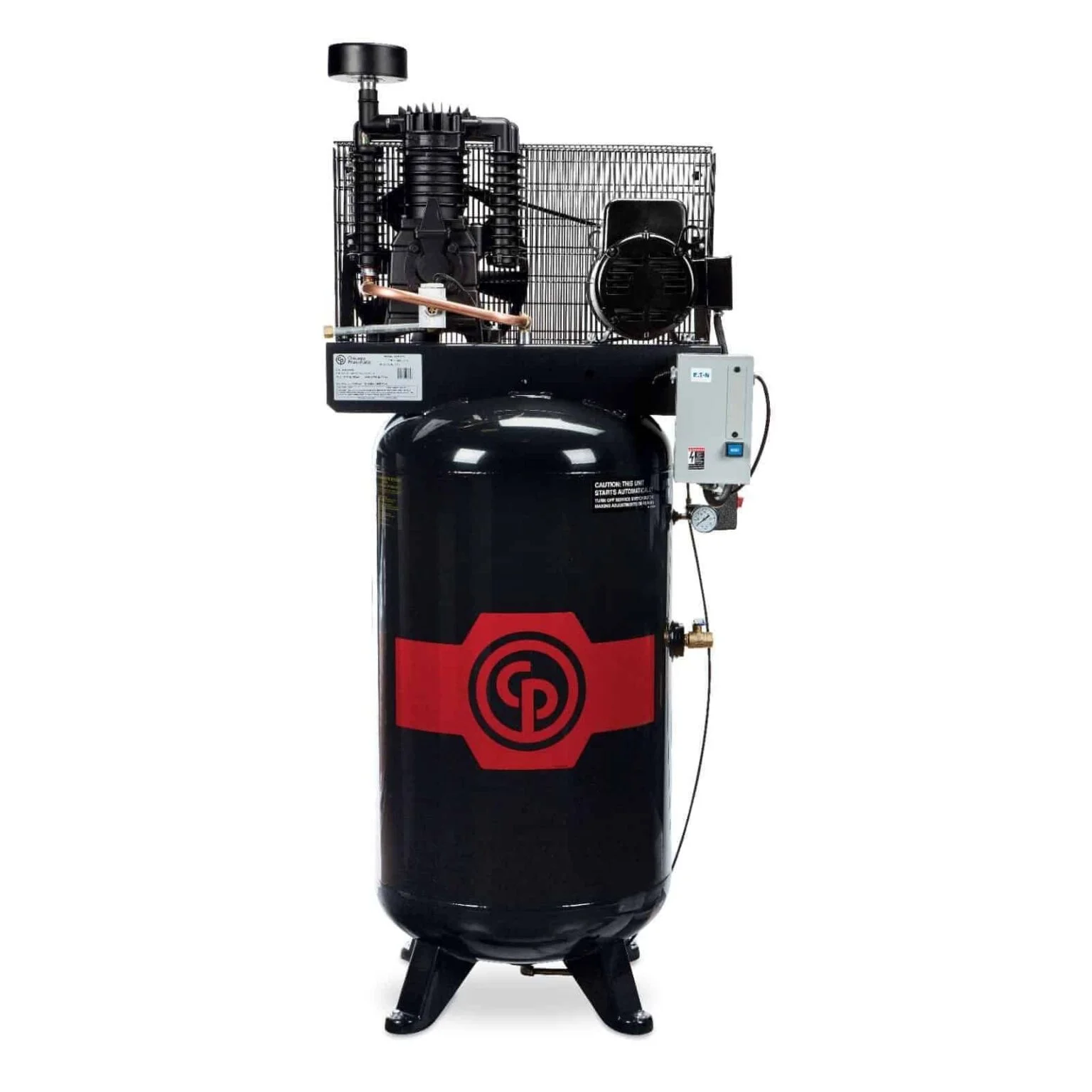

Chicago Pneumatic RCP-C7583VS Air Compressor – 7.5HP 80Gal
$1,566.00
Chicago Pneumatic RCP-C7583VS: Industrial 7.5HP vertical system featuring an “Iron Series” pump and 3-phase motor for high-cycle automotive shop environments.
- Motor Specs: 7.5 HP 3-Phase
- Airflow Volume: 680 L/min (24.0 CFM)
- Pressure Peak: 175 PSI (12 Bar)
- Tank Orientation: 80 Gallon Vertical
- System Extra: Magnetic Starter Pre-Wired
In Stock
Description
Chicago Pneumatic RCP-C7583VS Air Compressor – 7.5 HP Iron Series Two-Stage (80 Gallon Vertical)
The Chicago Pneumatic RCP-C7583VS Air Compressor is a heavy-duty 7.5 HP three-phase two-stage reciprocating compressor from the Iron Series, engineered for automotive workshops, fabrication shops, and light industrial applications that require reliable compressed air, long service life, and consistent performance.
It features a 7.5 HP electric motor, a rugged all cast iron two-stage pump, and an 80-gallon ASME-certified vertical air receiver tank, making it a compact but powerful industrial-grade air system designed for daily professional use.
This model delivers approximately 23 CFM at 100 PSI (up to ~175 PSI maximum pressure), placing it in the standard industrial 7.5 HP shop compressor class used for multi-tool operation and continuous workshop duty.
Key Features
- 7.5 HP industrial three-phase electric motor
- Heavy-duty two-stage cast iron compressor pump
- Air delivery: ~23 CFM @ 100 PSI
- Maximum pressure: 175 PSI
- 80-gallon ASME-certified vertical air receiver tank
- Low-RPM pump design (~900 RPM) for longer durability
- Disc valve technology for improved airflow efficiency
- Finned discharge tubes for better cooling performance
- Magnetic motor starter included (typical configuration)
- Built for continuous-duty industrial and workshop use
Performance Overview
The RCP-C7583VS is designed for consistent shop air supply in environments where multiple pneumatic tools operate throughout the day. The two-stage cast iron pump compresses air more efficiently than single-stage systems, reducing heat and improving long-term reliability.
Key performance benefits include:
- Stable airflow for multiple air tools
- Lower operating RPM for reduced wear and heat
- Improved cooling via intercooler and finned discharge system
- Reliable continuous-duty operation
Typical applications include:
- Automotive repair shops
- Tire service centers
- Light fabrication workshops
- Maintenance facilities
- Small industrial production environments
Iron Series Advantages
Heavy-Duty Cast Iron Construction
Built for long service life under frequent cycling and continuous use.
Two-Stage Compression Efficiency
Improves air output stability and reduces thermal stress.
Industrial Three-Phase Power
Designed for commercial workshop and production environments.
Vertical Tank Efficiency
80-gallon vertical ASME tank saves floor space while maintaining strong air reserve.
Ideal Applications
- Automotive workshops
- Light industrial production
- Fabrication shops
- Maintenance departments
- Pneumatic tool systems
- Multi-user workshop environments
| Specification | Details |
|---|---|
| Model | Chicago Pneumatic RCP-C7583VS |
| Series | Iron Series |
| Motor Power | 7.5 HP |
| Pump Type | Two-Stage Cast Iron |
| Lubrication | Splash Lubricated |
| Air Delivery | ~23 CFM @ 100 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 80 Gallons |
| Tank Orientation | Vertical |
| Voltage | 208–230V / 460V (3-phase) |
| Duty Cycle | Continuous Industrial Use |
| Application | Automotive / Light Industrial |
