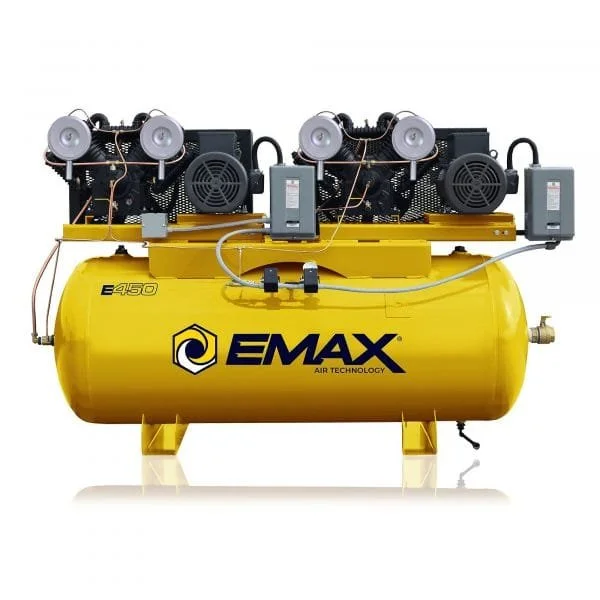

EMAX ESP10D120V3 – Silent V4 3PH Horizontal Dual Piston Compressor
$3,599.00
The ESP10D120V3 is designed for high-demand industrial environments where multiple pneumatic tools operate simultaneously. Compared to single-phase Silent Air models, the 3-phase configuration provides:
- Smoother power delivery and higher efficiency
- Better performance under continuous load
- Reduced electrical stress and heat buildup
- Improved suitability for long runtime industrial systems
Typical applications include:
- Fabrication workshops
- Automotive service centers with multiple bays
- Manufacturing support systems
- Paint and finishing lines
- Multi-tool pneumatic stations
In Stock
Description
EMAX ESP10D120V3 – Silent V4 3-Phase Horizontal Dual Piston Air Compressor (120 Gallon)
The EMAX ESP10D120V3 is a high-capacity industrial Silent Air (V4 series) 2-stage dual piston compressor designed for large workshops, fabrication facilities, and industrial environments that require very high airflow, low noise operation, and true continuous-duty performance in a 3-phase power system.
It is built on EMAX’s Silent Air V4 platform, combining a 10 HP industrial three-phase motor, a two-stage cast iron dual-piston pump, and a large 120-gallon horizontal ASME-certified air tank. This configuration is engineered for stable air delivery, reduced cycling, and long-term durability under heavy workloads.
Key Features
- 10 HP industrial 3-phase electric motor (208–230V / 460V depending on configuration)
- Advanced Silent Air V4 intake noise reduction system
- Heavy-duty dual piston, two-stage cast iron, pressure-lubricated pump
- Air delivery (typical class): ~35–40 CFM @ 100 PSI (varies by configuration)
- Maximum pressure: 175 PSI
- Large 120-gallon horizontal ASME-certified tank
- Low-RPM industrial pump design for extended service life
- Belt-driven heavy-duty industrial system
- Magnetic starter and industrial control panel (typical setup)
- Designed for continuous workshop and light industrial duty cycles
Advantages
Silent Air V4 Technology
Reduces intake noise while maintaining high airflow output.
Dual Piston 2-Stage System
Improves compression efficiency and durability under continuous use.
3-Phase Industrial Stability
Ideal for factories and professional shops with heavy air demand.
120-Gallon Large Tank
Reduces pressure fluctuation and compressor cycling.
Ideal Applications
- Industrial workshops
- Manufacturing facilities
- Automotive multi-bay garages
- Fabrication and welding shops
- Continuous pneumatic tool systems
- Light production lines
| Specification | Details |
|---|---|
| Model | EMAX ESP10D120V3 |
| Motor Power | 10 HP |
| Phase | 3-Phase (industrial power) |
| Pump Type | Dual piston, two-stage cast iron, pressure lubricated |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Max Pressure | 175 PSI |
| Duty Cycle | Industrial / Continuous workshop |
| Noise System | Silent Air V4 intake silencing |
| Drive Type | Belt-driven |
| Application | Workshop / fabrication / industrial |
