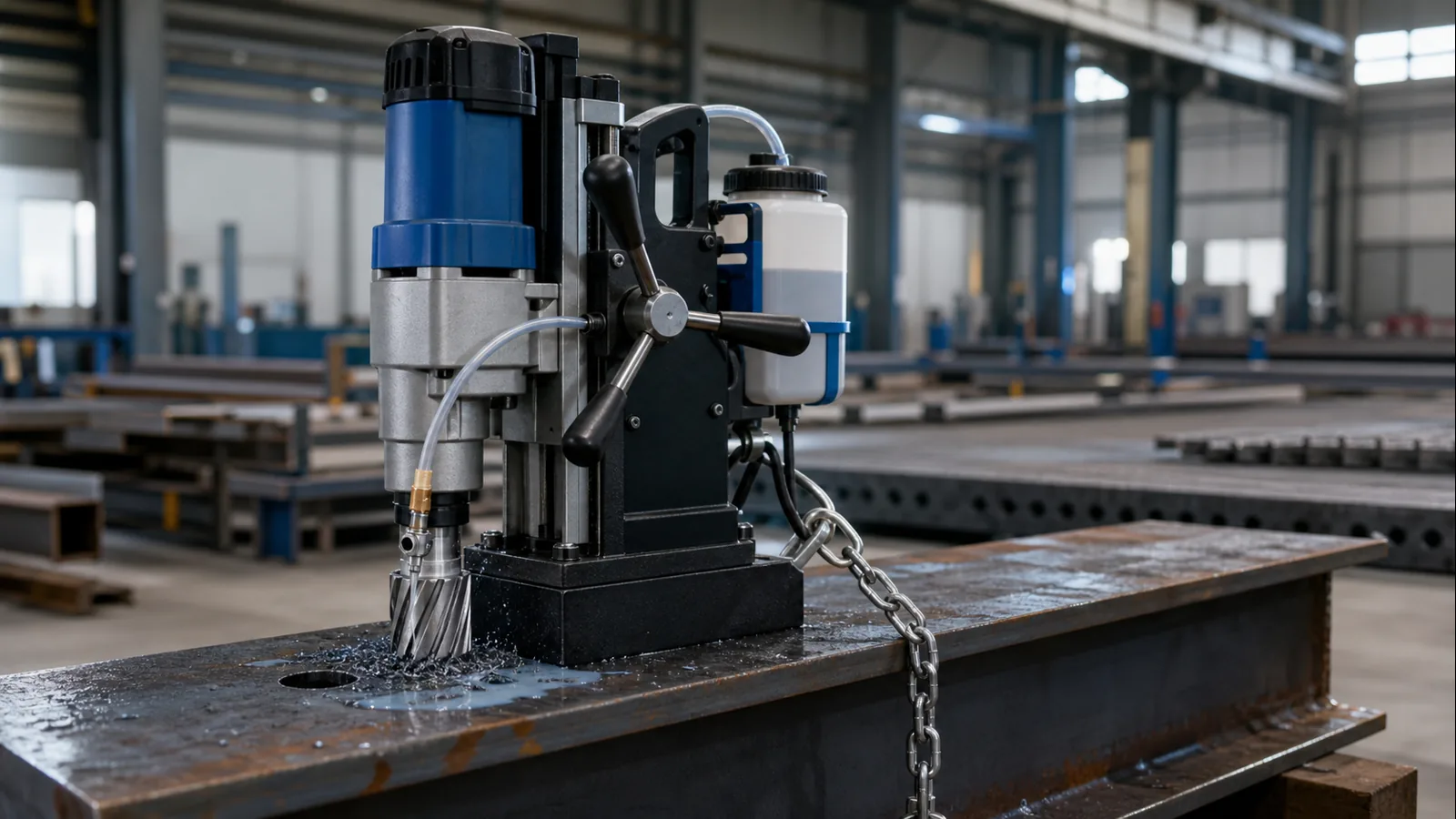

Magnetic Drill Buying Guide: 9 Best Safety Checks
Choose a magnetic drill using cutter capacity, magnet holding force, material thickness, speed, feed, power, safety, coolant and service.
Written bySales HarfanTools
magnetic drill buying guide helps fabricators and field crews create accurate holes in structural steel without moving the work to a drill press. The magnetic base provides portable positioning, but safe holding depends on clean ferromagnetic material, adequate thickness, full contact, power, and correct setup.
Select from hole diameter and depth, cutter type, plate thickness, orientation, access, feed, spindle, cooling, electrical supply, and restraint. The same framework works in US and Canadian shops and across Asian fabrication and construction markets when local voltage and certification are verified.
magnetic drill buying guide: Quick Answer
Choose capacity above the largest routine annular cutter, verify the manufacturer’s minimum steel thickness and magnet rating, select speeds for the cutter and material, and require mechanical restraint for elevated or vertical work. Test the exact base surface, power source, cutter, coolant, and operator position.
| Decision factor | Best-fit guidance | Verify before buying |
|---|---|---|
| Small structural holes | Compact magnetic drill | Cutter diameter, reach, and minimum plate. |
| Large deep holes | High-torque multi-speed model | Annular cutter depth and spindle power. |
| Vertical or overhead work | Low-weight model with restraint | Magnet status and fall protection. |
| Remote fabrication | Cordless or suitable generator supply | Runtime, voltage quality, and coolant. |
1. Define Hole Diameter, Depth, and Tolerance
List routine and maximum holes, material grades, plate thickness, edge distance, positional tolerance, finish, and whether holes are through or blind. Annular cutters remove a ring of material and can be faster than twist drills for larger holes.
Confirm actual cutter capacity at the required depth and spindle connection. Leave space for pilot pin, arbor, coolant, slug ejection, and machine travel.
2. Verify Magnet Holding Conditions
Published magnetic force is typically measured on clean flat steel of adequate thickness. Paint, rust, scale, chips, curvature, thin plate, gaps, and nonferrous material reduce holding.
Use the manufacturer minimum material thickness and test the real surface. A magnetic drill is not suitable on aluminum or austenitic stainless without an approved clamping plate or fixture.
3. Match Speed and Torque to Cutter and Material
Large cutters and hard materials generally need lower speed and adequate torque; small cutters can use higher speed. Multi-speed or variable-speed drives broaden the useful range.
Use cutter-maker speed and feed data as a starting point. Watch chip color and shape, sound, vibration, and motor load. Excess speed, dull teeth, or low feed can overheat and rub.
4. Compare Feed Travel, Rigidity, and Access
Check maximum stroke, rack condition, slide adjustment, quill or arbor runout, handle position, and whether feed controls can move to either side. Compact height matters under beams and inside fabricated assemblies.
Rigidity controls cutter life and hole finish. Extend the slide only as needed and correct play before it becomes chatter or broken teeth.
5. Choose Annular Cutters, Twist Drills, and Tapping
Verify the approved tool types, arbor, pilot pins, maximum diameter, cutting depth, and adapter limits. Some magnetic drills support tapping or countersinking, but capacity and reversal controls vary.
Do not assume an adapter preserves full capacity. Use guarded, manufacturer-approved accessories and keep cutters sharp, correctly installed, and stored against tooth damage.
6. Plan Coolant and Chip Control
Coolant reduces heat, carries chips, and improves cutter life when compatible with the material, orientation, and manufacturer instructions. Overhead work may require paste or another approved method rather than free liquid.
Control sharp hot chips and the ejected slug. Keep people out of the discharge path, use tools rather than hands for chip removal, and isolate power before clearing a jam.
7. Select Corded or Cordless Power
Corded magnetic drills suit sustained shop work with stable supply. Cordless units improve mobility and remove cable dependence, but require measured holes per pack, charger capacity, and safe battery handling.
For either type, verify voltage, frequency, electrical protection, magnet-release behavior, and restart prevention. A generator must provide compatible voltage quality and capacity.
8. Control Vertical and Overhead Risk
Use the supplied safety chain or approved restraint whenever a falling drill could injure people or damage equipment. The restraint is backup; it does not compensate for poor base contact.
Plan handling, attachment, coolant, chip direction, operator position, and work-at-height controls before energizing the magnet. Never place body parts beneath the tool.
9. Inspect Serviceability and Acceptance
Review brushes where fitted, cable, magnet face, switches, slide adjustment, spindle bearings, coolant system, battery, charger, and replacement parts. Ask for service response and calibration or inspection guidance.
Acceptance-test the largest routine hole in representative steel and orientation. Measure time, diameter, location, finish, current or battery use, temperature, and cutter wear.
How to Compare magnetic drill buying guide Options Objectively
Start with a written duty profile instead of a brand shortlist. Record the property or workpiece, normal and peak workload, operating hours, access limits, available utilities, climate, operator experience, and the result that must be achieved. For this magnetic drill buying guide decision, the most useful quotation is one that states its assumptions and identifies every included battery, charger, cord, blade, bit, accessory, guard, transfer device, or consumable.
Compare ratings at the same operating point. Maximum values are often measured under conditions that do not represent a full shift, tall wet grass, reinforced concrete, thick steel, motor starting current, or repeated production cycles. Ask for continuous output, duty cycle, runtime at a stated load, recharge or refuel time, environmental derating, service intervals, and the exact test method behind any noise, vibration, capacity, or efficiency claim.
Then run a representative acceptance test. Use the regular operator, typical material or turf, the accessories that will be used in production, and enough time to expose heat, battery, filtration, traction, or duty-cycle limits. Record setup time, productive time, interruptions, finish quality, consumable wear, energy or fuel use, and operator feedback. A short controlled test makes magnetic drill buying guide comparisons more defensible than a catalog specification alone.
Finally, calculate total ownership cost. Include purchase price, freight, tax or duty, installation, batteries, chargers, fuel, electricity, approved accessories, wear parts, maintenance labor, training, storage, downtime, and expected resale value. Confirm who performs warranty work and how quickly common parts can reach the site. The lowest initial price is not automatically the lowest cost per acre, hole, cut, weld, or delivered kilowatt-hour.
magnetic drill buying guide for the United States, Canada and Asia
United States buying notes
US buyers should verify electrical listing, 120 V or required shop supply, fall restraint, OSHA power-tool rules, and site electrical protection. Structural work may also have project-specific hole and connection requirements that the responsible engineer controls.
Canada buying notes
Canadian buyers should confirm recognized certification marks, CCOHS drill guidance, cold battery behavior, and approved extension equipment. Imported US voltage does not guarantee Canadian certification or warranty.
Asia buying notes
Asian fabrication sites vary in voltage, frequency, plug, heat, humidity, steel condition, and service coverage. Confirm the exact motor and charger nameplate, magnet performance on locally used sections, replacement cutter supply, and compliance in the destination country.
Do not treat an imported listing as proof of local compatibility. Confirm the exact model suffix, voltage, frequency, plug or outlet, certification mark, emissions status, warranty territory, parts channel, and manual language. Asia is not one electrical or regulatory market: for example, Japan uses 100 V and both 50 Hz and 60 Hz regions, while many Southeast Asian installations use approximately 220–240 V at 50 Hz. The machine name can remain the same while its motor, charger, receptacles, firmware, or compliance package changes.
Nine-Step Magnetic Drill Checklist
- Define hole diameter, depth, and tolerance.
- Verify steel type, thickness, flatness, and coating.
- Match spindle speed and torque.
- Check stroke, rigidity, and access height.
- Confirm cutter, arbor, and tapping compatibility.
- Plan coolant, chips, and slug control.
- Select compatible corded or cordless power.
- Specify restraint for vertical and overhead work.
- Run a representative acceptance hole.
Keep the completed checklist with the quotation, product data, acceptance record, and maintenance baseline. This gives the next buyer or technician evidence of why the equipment was selected and which assumptions must be revisited when the workload changes.
Frequently Asked Questions About magnetic drill buying guide
How thick must steel be for a magnetic drill?
Use the exact manufacturer minimum. Magnetic holding falls on thin, coated, curved, dirty, or uneven material, so catalog force alone is insufficient.
Can a magnetic drill work on stainless steel?
Only if the material is sufficiently ferromagnetic or an approved fixture provides a suitable base. Many stainless grades do not hold a magnet effectively.
Why use an annular cutter instead of a twist drill?
An annular cutter removes only a ring, often reducing power and time for larger holes while producing a slug. The machine and arbor must support it.
Does a magnetic drill need a safety chain?
Use the manufacturer-supplied or approved restraint whenever loss of magnet could cause a fall, especially vertical, overhead, or elevated work.
Can a portable generator power a magnetic drill?
It can when voltage, frequency, continuous and starting capacity, grounding, protection, and power quality meet the drill requirements. Verify with both manufacturers.
Trusted Resources and HarfanTools Next Steps
Use CCOHS drill safety and OSHA power-operated hand-tool requirements. Compare current magnetic drills and rotary hammers and review essential metal fabrication tools.
Bottom line: Capacity matters only after the magnet can hold safely on the real work. Match cutter, speed, feed, base, restraint, coolant, power, and service as one drilling system.
Final Review of magnetic drill buying guide
Before approving a magnetic drill buying guide decision, compare the written requirement with the supplier quotation line by line. Confirm the exact regional model, capacity at the intended duty, included accessories, safety controls, utilities, warranty territory, service contact, and acceptance test. Any exception should be recorded and resolved before payment or deployment.
The strongest magnetic drill buying guide recommendation also identifies who will operate, inspect, maintain, and store the equipment. Give that team the manual, baseline settings, approved consumables, spare-parts list, inspection frequency, and escalation path. Review the magnetic drill buying guide file after commissioning and again after the first major service interval so measured operating data can improve the next purchase.
Magnetic drill buying guide: regional procurement workbook
A high-confidence purchase comes from a documented job test, not a feature-count contest. Use this workbook after reading the comparison above. It turns the magnetic drill buying guide decision into evidence that a homeowner, contractor, buyer, or safety lead can review later. The objective is to choose the smallest practical system that completes accurate annular cutting and drilling on structural or fabricated steel in shop and field positions without transferring hidden cost or risk to the operator.
1. Write a one-page job profile before requesting prices
Record the material or site, task frequency, maximum continuous session, access restrictions, storage conditions, available power or fuel, operators, transport limits, and acceptable downtime. Add the worst normal condition—not an extreme misuse case—so the shortlist is not built around an easy demonstration. For this magnetic drill, the useful measures are hole time, cutter life, magnet holding conditions, setup time, coolant control, positional access, and repeatability on representative material. Keep units consistent and take notes during the same work cycle.
Separate a requirement from a preference. A requirement is a gate width, input voltage, minimum hole diameter, runtime, safety control, or locally available wear part that determines whether the equipment can do the job. A preference is color, an unused mode, or a theoretical maximum that does not affect the route. This distinction prevents a premium option from disguising a poor operational fit.
2. Score the shortlist with weighted evidence
| Decision factor | Suggested weight | Evidence to collect | Reject when |
|---|---|---|---|
| Job performance | 30% | Timed trial on representative work | The core task needs workarounds |
| Safety and exposure control | 20% | Manual, guards, controls, placement, PPE and local assessment | A required control is missing or impractical |
| Serviceability | 15% | Written parts list, dealer response and repair path | Critical wear parts have no reliable source |
| Operating fit | 15% | Access, transport, storage, power and weather check | The unit does not fit the real environment |
| Total cost | 15% | Three-year cost model with downtime | Assumptions depend on missing prices or unrealistic life |
| Operator acceptance | 5% | Structured feedback after equal trials | Controls cannot be used consistently |
Score every row from one to five, multiply by its weight, and attach the evidence. Adjust weights before—not after—the trial if a factor is genuinely more important. A transparent worksheet makes a magnetic drill buying guide recommendation easier to challenge and improve without relying on memory.
3. Adapt the test for the United States, Canada, and Asia
United States field note
For US fabrication work, validate the drill on the actual material thickness, surface, orientation, cutter diameter, and available power. Use the safety chain or strap exactly as the manufacturer instructs. Check the current product manual, safety notices, and applicable workplace or electrical requirements for the exact use.
Canada field note
For Canada, include cold steel, condensation, outdoor leads, and storage conditions in the trial. Confirm local availability of pilots, cutters, arbors, coolant, brushes, and authorized repair. Confirm bilingual documentation, approved electrical components where applicable, and a support route that operates in the province or territory.
Asia field note
For Asian projects, verify voltage and frequency, generator compatibility, hot-work controls, humidity, and field-service coverage. Imported specifications do not replace a job-specific holding and power test. Asia is not one electrical or regulatory market; document the destination country, facility rules, grid conditions, language needs, and authorized service before ordering.
These regional notes are screening prompts, not substitutes for local law, an equipment manual, or a site risk assessment. If a supplier cannot answer a region-specific compatibility question in writing, treat that uncertainty as a cost and risk rather than assuming the machine will work.
4. Run a controlled acceptance trial
- Inspect the unit, accessories, guards, labels, connectors, serial number, and manual before energizing or starting it.
- Use the same operator, route, material, measurement method, and safe work procedure for each candidate where practical.
- Record baseline conditions, including temperature, moisture, task dimensions, load, battery state, fuel level, or supply voltage as relevant.
- Complete a normal work cycle. Do not defeat a guard, overload the machine, or improvise a connection to make a candidate pass.
- Log output quality, time, interruptions, consumables, exposure controls, operator comments, and remaining energy or fuel.
- Repeat any surprising result. A single fast run is not enough evidence for a fleet or household backup decision.
- Document defects and supplier responses before acceptance, then retain the worksheet with purchase and warranty records.
Pay special attention to loss of magnetic holding force, falling equipment, cutter breakage, swarf injury, poor coolant management, damaged supply leads, and unsuitable thin material. The best magnetic drill buying guide choice is the one that controls these foreseeable problems while meeting the real duty cycle. An impressive no-load demonstration does not prove production performance or safe integration.
5. Compare three-year cost, not only checkout price
Build a simple annual model for drill, annular cutters, pilots, arbors, coolant, chains, power leads, inspection labor, cutter changes, downtime, and repair logistics. Use local quotes, measured consumption, the planned number of work cycles, and the organization’s real labor rate. Keep tax, freight, finance, and resale assumptions visible. For batteries or high-wear components, model a reasonable replacement case and a stress case instead of promising a fixed life.
Downtime deserves its own line. Estimate lost production or the cost of a rental, backup unit, delayed job, spoiled material, or missed service window. Then ask the supplier for current stock and lead time on the five parts most likely to stop work. This often changes a magnetic drill buying guide ranking more than a small difference in purchase price.
6. Questions that deserve written answers
- Which exact configuration was quoted, including model, voltage, battery, charger, guard, accessory, and country version?
- What task limits, duty cycle, environment, storage range, and maintenance intervals does the manual specify?
- Which consumables and safety-critical parts are locally stocked, and what are their current lead times?
- Who performs warranty diagnosis and repair, and what evidence is required to support a claim?
- What operator training, inspection record, or commissioning check is recommended?
- Which claim in the proposal comes from a controlled test, and which is only an estimate?
Save the completed worksheet and revisit it after 30 and 90 days. Compare forecast runtime, output, consumable use, incidents, and downtime with actual results. That feedback closes the loop: the next magnetic drill buying guide purchase starts with site evidence instead of repeating an assumption.
