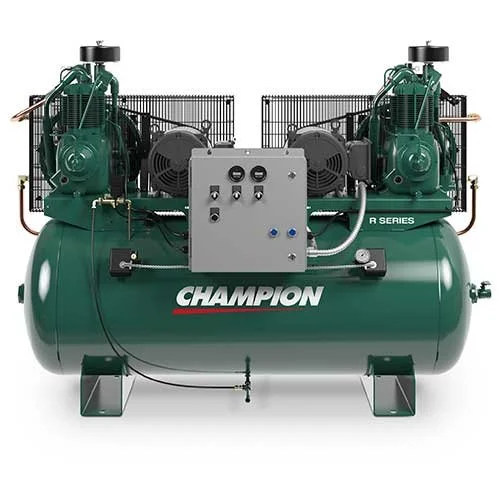

Champion HR15DF-24 Air Compressor – 15HP R-Series
$8,090.00
The Champion HR15DF-24 is designed for facilities where compressed air is a critical production utility. Its duplex design provides operational flexibility by allowing one compressor to operate during lower demand periods while automatically bringing the second compressor online during peak usage. This approach helps balance wear, improve efficiency, and increase system reliability.
The dual R-30 pumps are engineered for dependable long-term service with:
- Low-speed operation at approximately 1,034 RPM
- Reduced heat generation
- Lower vibration levels
- Extended component lifespan
- Consistent airflow under heavy loads
The large 240-gallon receiver tank provides excellent air storage capacity, helping maintain stable pressure and reducing compressor cycling during high-demand production periods.
In Stock
Description
Champion HR15DF-24 Air Compressor – 15 HP R-Series Duplex Industrial Air Compressor (240 Gallon)
The Champion HR15DF-24 Air Compressor is a heavy-duty R-Series duplex reciprocating air compressor system engineered for manufacturing plants, automotive facilities, fabrication workshops, and industrial operations that require high airflow, continuous-duty performance, and built-in redundancy. This model features dual 15 HP industrial electric motors (30 HP total system output), two Champion R-30 two-stage cast iron compressor pumps, and a 240-gallon ASME-certified horizontal air receiver tank.
Designed for demanding industrial environments, the HR15DF-24 utilizes Champion’s proven R-Series splash-lubricated pump technology, offering dependable operation, easy maintenance, and long service life. The duplex configuration allows the compressors to alternate during normal operation or run simultaneously when air demand increases, ensuring maximum system reliability. With airflow up to 97.4–100.6 CFM and a maximum operating pressure of 175 PSI, the HR15DF-24 is an excellent solution for centralized compressed air systems and multi-shift production facilities
Key Features
- Duplex configuration with 2 × 15 HP industrial electric motors
- Total system power: 30 HP
- Dual Champion R-30 two-stage cast iron compressor pumps
- Air delivery: 97.4 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Large 240-gallon ASME-certified horizontal air receiver
- Automatic alternator control for balanced compressor operation
- Splash-lubricated pump design for durability and simplified maintenance
- Disc valve technology for efficient airflow and long service life
- Loadless centrifugal unloading system for reduced startup stress
- Heavy-duty industrial control panel included
- Continuous-duty industrial design for demanding environments
R-Series Advantages
Duplex Redundancy
Two independent compressor systems provide backup capability and continuous operation during maintenance or unexpected downtime.
Proven R-30 Pump Design
Champion’s R-Series pumps feature cast iron construction, disc valves, balanced crankshafts, and oversized bearings for exceptional durability.
High Airflow Output
With nearly 100 CFM available at 175 PSI, the HR15DF-24 can support multiple production lines, CNC equipment, and large pneumatic tool networks simultaneously.
Lower Operating Costs
Alternating compressor operation helps distribute wear evenly across both pumps, extending maintenance intervals and reducing lifecycle costs.
Ideal Applications
- Manufacturing plants
- Automotive service and assembly facilities
- CNC machining centers
- Metal fabrication workshops
- Packaging and processing plants
- Industrial maintenance departments
- Multi-station pneumatic tool systems
- Centralized compressed air networks
| Specification | Details |
|---|---|
| Model | Champion HR15DF-24 |
| Series | R-Series Duplex |
| Motor Power | 15 HP × 2 (30 HP Total) |
| Pump Model | Dual R-30 |
| Compressor Type | Two-Stage Reciprocating |
| Lubrication | Splash Lubricated |
| Air Delivery | 97.4 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 240 Gallons |
| Tank Orientation | Horizontal |
| Pump Speed | 1,034 RPM |
| Voltage | 208V / 230V / 460V Three-Phase |
| Weight | Approx. 2,460 lbs (1,116 kg) |
| Duty Cycle | Continuous Industrial Service |
