Champion HDR5-8Y Air Compressor – 9HP Diesel R
$5,001.00
The HDR5-8Y is built for true off-grid compressed air performance, eliminating dependency on electrical infrastructure. The R-Series pump is designed with heavy-duty internal components including intercooling, disc valves, and cast iron construction, ensuring stable airflow and long operational life.
Its engine-driven design makes it ideal for service trucks and remote job sites, where reliability and mobility are more important than stationary high-volume output.
In Stock
Description

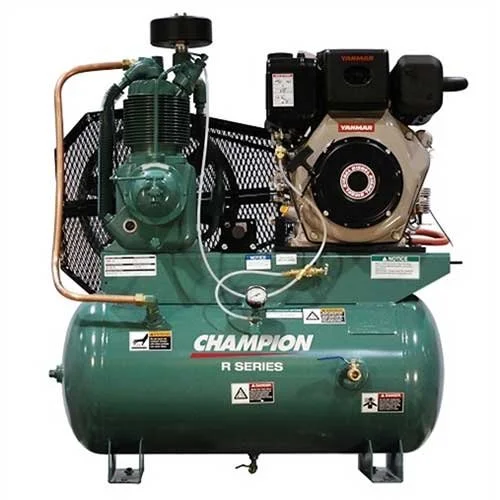

Champion HDR5-8Y Air Compressor – 9 HP Diesel R-Series Industrial Engine Driven Compressor
The Champion HDR5-8Y Air Compressor is a heavy-duty engine-driven R-Series reciprocating compressor package designed for demanding field applications such as construction sites, mining operations, oil & gas service, and remote industrial maintenance. It is powered by a 9.3 HP Yanmar diesel engine and built on Champion’s proven R-Series two-stage cast iron splash-lubricated pump platform, engineered for durability, efficiency, and long service life in harsh environments.
This model is typically configured with an 80-gallon ASME-certified horizontal tank, delivering strong airflow for mobile industrial operations where electrical power is not available.
It produces approximately 21.7 CFM at 175 PSI, making it suitable for continuous-duty pneumatic tools in field conditions.
Key Features
- 9.3 HP Yanmar diesel engine (industrial-grade, field-proven reliability)
- Heavy-duty R-Series two-stage cast iron splash-lubricated pump
- Engine-driven system for complete off-grid operation
- Air delivery: ~21.7 CFM @ 175 PSI
- Maximum pressure: 175 PSI
- ASME-certified 80-gallon horizontal tank (common configuration)
- Disc valve technology for high efficiency and long service life
- Loadless starting system to reduce engine stress
- Heavy-duty steel skid/frame for mobile durability
- Built for continuous field and remote operation
Ideal Applications
- Construction and infrastructure projects
- Mining and quarry operations
- Oil & gas field maintenance
- Pipeline and remote industrial service
- Heavy equipment repair in the field
- Mobile service truck operations
| Specification | Details |
|---|---|
| Model | Champion HDR5-8Y |
| Series | R-Series Engine Driven |
| Engine | 9.3 HP Yanmar Diesel |
| Pump Type | Two-Stage Cast Iron (Splash Lubricated R-Series) |
| Air Delivery | ~21.7 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 80 Gallons (typical configuration) |
| Configuration | Engine Driven / Mobile / Skid Mounted |
| Application | Construction / Mining / Industrial Field Service |
