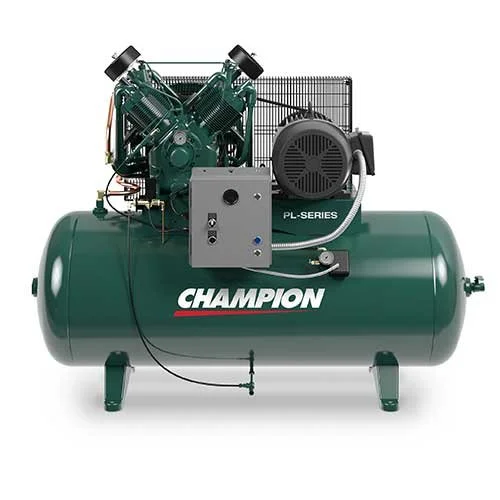

Champion HPL25-12 Air Compressor – 25HP PL-Series
$7,899.00
The HPL25-12 is designed specifically for extreme-duty industrial applications where compressed air is a mission-critical utility. Unlike conventional splash-lubricated compressors, the PL-Series utilizes a full pressure lubrication system that continuously supplies filtered oil to crankshaft bearings, connecting rods, and critical internal components. This design significantly reduces wear and extends equipment life under continuous operation.
The compressor’s 90.1 CFM output at 175 PSI allows it to support:
- Multiple CNC machining centers
- Large fabrication facilities
- Automated production lines
- Industrial blast and finishing systems
- Packaging and processing plants
- Centralized compressed air networks
Its low pump speed of approximately 770 RPM helps minimize heat generation, vibration, and component wear, contributing to long-term reliability.
In Stock
Description
Champion HPL25-12 Air Compressor – 25 HP PL-Series Pressure Lubricated Industrial Compressor (120 Gallon)
The Champion HPL25-12 Air Compressor is a premium industrial-grade PL-Series pressure-lubricated reciprocating compressor engineered for the most demanding manufacturing, processing, and production environments. Featuring a 25 HP three-phase electric motor, a heavy-duty PL-70 pressure-lubricated two-stage cast iron pump, and a 120-gallon ASME-certified horizontal air receiver, this compressor is designed to deliver exceptional airflow, reliability, and continuous-duty performance.
With an impressive 90.1 CFM at 175 PSI, the HPL25-12 is ideal for large-scale industrial facilities requiring dependable compressed air for multiple production lines, CNC equipment, pneumatic systems, and heavy-duty manufacturing operations.
Key Features
- 25 HP industrial three-phase electric motor
- Heavy-duty PL-70 two-stage pressure-lubricated cast iron pump
- High airflow output: 90.1 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Large 120-gallon ASME-certified horizontal tank
- Positive displacement oil pump providing continuous lubrication
- Hydraulic unloader system for loadless starting
- Heavy-duty disc valve technology for improved efficiency
- External spin-on oil filter and oil pressure monitoring system
- Designed for off-level operation and extreme-duty environments
- Built for 24/7 continuous industrial service
Advantages of the PL-Series
Pressure Lubrication Technology
Continuous oil circulation protects critical moving parts and ensures maximum durability under heavy workloads.
Extreme-Duty Construction
Built with cast iron cylinders, heavy-duty bearings, disc valves, and industrial-grade components for long service life.
High Airflow Capacity
Provides industrial-level compressed air performance for large facilities requiring stable pressure and high-volume output.
Reduced Maintenance Costs
Features replaceable bearings, external oil filtration, and simplified service access to reduce downtime and maintenance expenses.
Ideal Applications
- Manufacturing plants
- Automotive assembly facilities
- Aerospace production
- CNC machining centers
- Heavy fabrication workshops
- Industrial maintenance departments
- Food and packaging facilities
- Central compressed air systems
| Specification | Details |
|---|---|
| Model | Champion HPL25-12 |
| Series | PL-Series |
| Motor Power | 25 HP |
| Pump Model | PL-70 |
| Compressor Type | Two-Stage Pressure Lubricated |
| Tank Capacity | 120 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | 90.1 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Pump RPM | 770 RPM |
| Voltage | 208/230/460/575V, 3-Phase |
| Lubrication System | Full Pressure Lubrication |
| Duty Cycle | Continuous Duty |
| Weight | Approx. 1,365 lbs |
| Application | Heavy Industrial Manufacturing |
You may also like…
-
Chicago Pneumatic RCP-7581VS vertical reciprocating compressor resolves professional garage tool limits, forcing an exceptional volume of continuous high-pressure air through a space-saving footprint to eliminate single-phase circuit line lag.- Supplies steady 25.3 CFM delivery rate.
- Space saving 80 gallon vertical tank.
- Robust 7.5 HP electric motor drive.
- Sustains 175 Psi peak tool pressure.
- Operates cleanly across 230V single phase.
-
The BelAire 3312DL utilizes two independent compressor pumps and motors mounted on a single receiver tank. During periods of low air demand, only one compressor operates, reducing energy consumption and wear. When air demand increases, the second compressor automatically engages to maintain pressure and airflow. This intelligent duplex design extends equipment life while providing critical backup capability should one compressor require maintenance.
-
Campbell Hausfeld CE8003: Elite 15HP two-stage air compressor engineered for 3-phase industrial power, delivering maximum CFM for the most intensive pneumatic workflows.
- Engine Specs: 15.0 HP Two-Stage
- Airflow Volume: 1415 L/min (50.0 CFM)
- Force Rating: 175 PSI (12 Bar)
- Cylinder Capacity: 120 Gallon Horizontal
- Grid Spec: 230/460V 3-Phase
-
The BelAire 318HN is engineered to provide reliable compressed air for demanding industrial environments. Its two-stage compression system increases efficiency while reducing operating temperatures, helping extend pump life and improve long-term reliability. The large 80-gallon air receiver minimizes cycling and maintains stable pressure during high-demand applications.
-

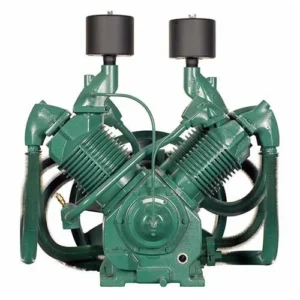

The BR26 sits in Champion’s upper industrial reciprocating range, designed for facilities that need high-volume compressed air without moving to rotary screw systems.
