EMAX ESP05V080I1PK – Silent 1PH Vertical Air Compressor
$1,666.00
The ESP05V080I1PK is designed for quiet, stable, and clean compressed air delivery in professional environments.
Typical applications:
- Automotive workshops
- Tire and detailing shops
- Small fabrication facilities
- Paint and finishing systems
- Light industrial maintenance
- Shops requiring quiet operation indoors
In Stock
Description

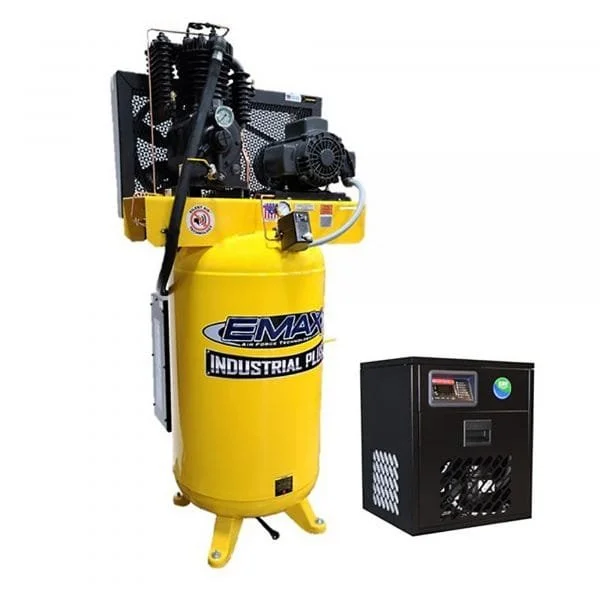

EMAX ESP05V080I1PK – Silent Air 5 HP 1-Phase Vertical Compressor (80 Gallon, 2-Stage + Dryer)
The EMAX ESP05V080I1PK is a premium industrial “Silent Air / Whisper Series” 5 HP two-stage vertical air compressor system designed for workshops that need quiet operation, continuous-duty capability, and clean, dry compressed air.
It combines a 5 HP single-phase electric motor, a two-stage cast iron pressure-lubricated pump, an 80-gallon ASME vertical tank, and often includes an integrated refrigerated air dryer package, making it a complete shop air solution rather than just a basic compressor unit.
This model is widely used in professional environments where noise reduction and air quality matter as much as performance.
Key Features
- 5 HP industrial single-phase electric motor (230V)
- Advanced Silent Air / Whisper intake noise suppression system
- Heavy-duty two-stage cast iron, pressure-lubricated pump
- Air delivery: ~19 CFM @ 100 PSI
- Maximum pressure: 175 PSI
- 80-gallon ASME-certified vertical tank
- Low-RPM pump design (~800 RPM) for longer service life
- Belt-drive system with industrial-grade components
- Integrated automatic tank drain (on PK bundle variants)
- Optional/typical refrigerated air dryer system (PK package)
- Designed for continuous or high-duty workshop use
Advantages
Whisper Silent Air Technology
Reduces intake noise using multi-baffle filtration design.
Cleaner Air Output (PK System Advantage)
Dryer + filtration reduces moisture and oil contamination.
Industrial Cast Iron Pump
Built for long life under daily professional use.
Stable 80-Gallon Tank System
Reduces cycling and maintains consistent pressure.
Ideal Applications
- Automotive repair & detailing shops
- Paint booths and finishing work
- Small industrial workshops
- Maintenance departments
- Professional fabrication shops
- Indoor air compressor installations
| Specification | Details |
|---|---|
| Model | EMAX ESP05V080I1PK |
| Motor Power | 5 HP |
| Phase | Single Phase (208–230V) |
| Pump Type | Two-stage cast iron, pressure lubricated |
| Air Delivery | ~19 CFM @ 100 PSI |
| Max Pressure | 175 PSI |
| Tank Capacity | 80 Gallons |
| Tank Orientation | Vertical |
| Pump RPM | ~800 RPM |
| Motor RPM | ~1750 RPM |
| Duty Cycle | Industrial / Continuous workshop |
| Package | Compressor + Silencer + (optional) Dryer system |
