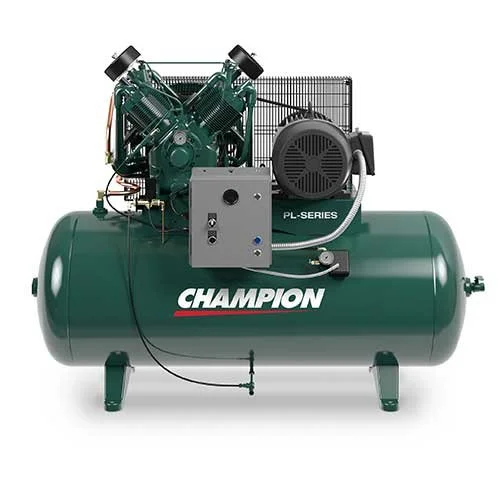

Champion HPL5D-8 Air Compressor – 5HP PL-Series
$5,510.00
The Champion HPL5D-8 is engineered for businesses that require reliable compressed air without moving to larger industrial compressor systems. The duplex design provides significant operational advantages, including reduced wear through alternating compressor cycles and increased airflow capacity during peak demand periods.
The pressure-lubricated PL-Series pumps continuously circulate filtered oil to bearings, crankshafts, and other critical components, significantly extending pump life and improving reliability in continuous-use environments.
With approximately 34 CFM at 175 PSI, the HPL5D-8 can efficiently support:
- Multiple pneumatic tools simultaneously
- Automotive repair bays
- Tire service equipment
- Maintenance workshops
- Light manufacturing operations
- Small production lines
In Stock
Description
Champion HPL5D-8 Air Compressor – 5 HP PL-Series Duplex Pressure Lubricated Industrial Compressor (80 Gallon)
The Champion HPL5D-8 Air Compressor is a compact yet powerful PL-Series duplex pressure-lubricated reciprocating air compressor designed for workshops, automotive service centers, maintenance facilities, and light industrial applications requiring dependable compressed air and built-in system redundancy. This model features dual 5 HP industrial electric motors, two PL-Series two-stage cast iron pressure-lubricated pumps, and an 80-gallon ASME-certified horizontal air receiver tank.
Designed for continuous-duty performance, the duplex configuration allows alternating compressor operation to reduce wear or simultaneous operation during periods of increased air demand. The pressure-lubricated pump design provides superior durability compared to conventional splash-lubricated compressors, making it ideal for demanding work environments.
With an airflow capacity of approximately 34 CFM at 175 PSI, the HPL5D-8 delivers reliable compressed air for multiple pneumatic tools and workshop operations.
Key Features
- Duplex configuration with 2 × 5 HP industrial electric motors
- Total system power: 10 HP
- Dual PL-Series pressure-lubricated two-stage cast iron pumps
- Air delivery: ~34 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- 80-gallon ASME-certified horizontal air receiver tank
- Full pressure lubrication system for maximum pump longevity
- Hydraulic unloading system for smooth, loadless starting
- Disc valve technology for improved airflow efficiency
- Automatic alternator control for balanced compressor operation
- Heavy-duty cast iron construction
- Continuous-duty industrial design
- Reduced maintenance and extended service life
Advantages of the PL-Series Duplex Design
Built-In Redundancy
If one compressor requires maintenance, the second unit can continue operating, minimizing downtime.
Pressure Lubrication Technology
Continuous oil circulation provides superior protection compared to splash-lubricated compressor systems.
Flexible Air Management
Alternating operation reduces wear, while simultaneous operation delivers maximum airflow when needed.
Extended Equipment Life
Heavy-duty cast iron construction and industrial-grade components ensure long-term reliability.
Ideal Applications
- Automotive repair centers
- Fleet maintenance facilities
- Tire service shops
- Industrial workshops
- Manufacturing support operations
- Equipment maintenance departments
- Small production facilities
- Service and repair centers
| Specification | Details |
|---|---|
| Model | Champion HPL5D-8 |
| Series | PL-Series Duplex |
| Motor Power | 5 HP × 2 (10 HP Total) |
| Pump Type | Dual Two-Stage Cast Iron |
| Lubrication | Full Pressure Lubricated |
| Air Delivery | ~34 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Tank Capacity | 80 Gallons |
| Tank Orientation | Horizontal |
| Voltage | 208/230V or 460V, 3-Phase |
| Drive Type | Belt Driven |
| Duty Cycle | Continuous Duty |
| Application | Industrial / Automotive / Workshop |
