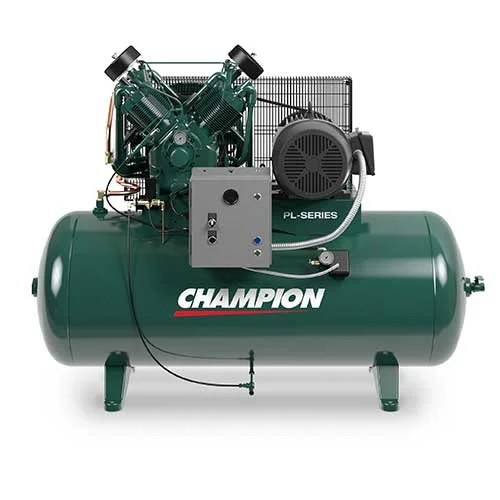

Champion HPL20-24 Air Compressor – 20HP PL-Series
$8,000.00
The Champion HPL20-24 is designed for facilities where compressed air is a critical production utility. The large 240-gallon receiver tank helps stabilize system pressure during peak demand periods, while the PL-70A pressure-lubricated pump ensures superior reliability under continuous operation.
Unlike conventional splash-lubricated compressors, the PL-Series lubrication system continuously delivers filtered oil to bearings, connecting rods, and other critical components. This significantly reduces wear, improves cooling, and extends service life in high-duty-cycle environments.
The compressor is capable of supporting:
- Multiple CNC machining centers
- Automated production lines
- Large fabrication shops
- Industrial painting systems
- Multi-user pneumatic tool networks
- Central plant compressed air systems
In Stock
Description
Champion HPL20-24 Air Compressor – 20 HP PL-Series Pressure Lubricated Industrial Compressor (240 Gallon)
The Champion HPL20-24 Air Compressor is a premium industrial PL-Series pressure-lubricated two-stage reciprocating air compressor engineered for continuous-duty manufacturing, automotive production, heavy fabrication, and centralized compressed air systems. Equipped with a 20 HP three-phase electric motor, a heavy-duty PL-70A cast iron pressure-lubricated pump, and a massive 240-gallon ASME-certified horizontal air receiver tank, this compressor is designed to deliver exceptional airflow, reliability, and long-term performance in demanding industrial environments.
With an output of approximately 77.5 CFM at 175 PSI, the HPL20-24 provides the capacity required for multiple production lines, CNC machinery, pneumatic tools, and facility-wide compressed air distribution systems.
Key Features
- 20 HP industrial-grade three-phase electric motor
- Heavy-duty PL-70A pressure-lubricated two-stage cast iron compressor pump
- Large 240-gallon ASME-certified horizontal air tank
- Air delivery: ~77.5 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Pressure lubrication system for continuous oil delivery to critical components
- Hydraulic unloading system for smooth, loadless starting
- Heavy-duty disc valve technology for maximum efficiency
- Intercooled two-stage compression design
- Industrial-grade crankshaft and bearing assembly
- Engineered for 24/7 continuous-duty operation
- Low maintenance and extended service intervals
Advantages of the PL-Series Design
Pressure Lubrication System
Provides constant oil circulation to critical internal components, reducing friction and maximizing durability.
Heavy-Duty Cast Iron Construction
Built for long service life and resistance to thermal stress under continuous operation.
High Airflow Capacity
Delivers sufficient compressed air for large industrial facilities and multi-shift operations.
Reduced Downtime
Designed for extended service intervals and dependable operation in demanding production environments.
Ideal Applications
- Manufacturing plants
- Automotive assembly facilities
- CNC machining operations
- Metal fabrication workshops
- Industrial maintenance departments
- Packaging and processing plants
- Centralized compressed air systems
| Specification | Details |
|---|---|
| Model | Champion HPL20-24 |
| Series | PL-Series |
| Motor Power | 20 HP |
| Pump Model | PL-70A |
| Compressor | Type Two-Stage Pressure Lubricated |
| Tank Capacity | 240 Gallons |
| Tank Orientation | Horizontal |
| Air Delivery | ~77.5 CFM @ 175 PSI |
| Maximum Pressure | 175 PSI |
| Voltage | 208/230V or 460V, 3-Phase |
| Lubrication System | Full Pressure Lubrication |
| Drive Type | Belt Driven |
| Duty Cycle | Continuous Duty |
| Application | Industrial Manufacturing |
